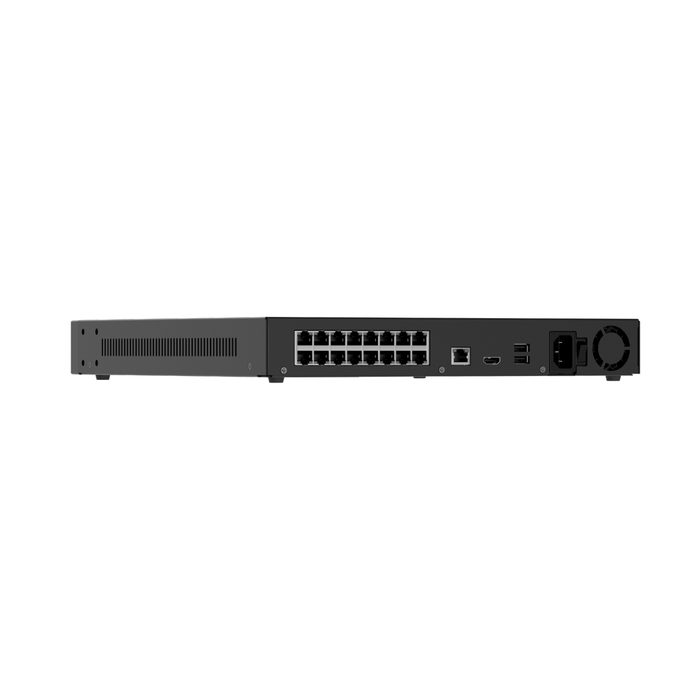

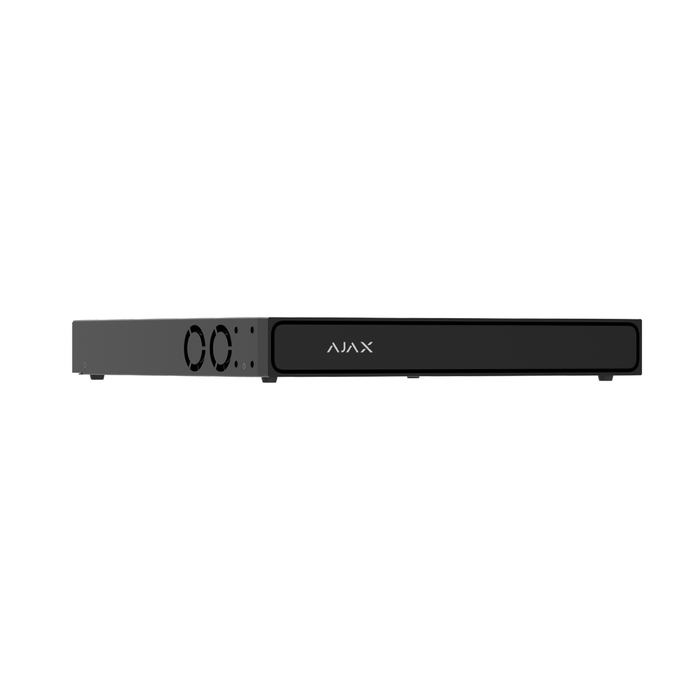

Ajax NVR H2DAC 16 Channel Network Video Recorder Black (AJA-160683)

The Ajax NVR H2DAC 16 Channel (Black) is a professional network video recorder (NVR) designed to integrate IP cameras into the Ajax ecosystem for seamless video surveillance. It enables users to monitor, record and manage video alongside Ajax security devices within a single platform.

Supporting up to 16 IP cameras, the NVR delivers high-quality recording with resolutions up to 12MP and features 4K HDMI output for clear live view and playback. It uses H.265/H.264 compression to optimise storage while maintaining smooth performance.

The system supports two hard drives (up to 16TB each, hot-swappable, not included), allowing continuous recording without downtime during maintenance. With support for ONVIF and RTSP protocols, it works with both Ajax and third-party cameras, making it ideal for commercial CCTV installations.

Key Features:

• 16 channel network video recorder (NVR)
• Supports up to 16 IP cameras
• Recording resolution up to 12MP
• 4K HDMI output for live view and playback
• H.265 / H.264 compression for efficient storage
• Supports 2x HDD (up to 16TB each, hot-swappable, not included)
• Event-based recording linked to Ajax alarms and detectors
• Compatible with Ajax and third-party IP cameras (ONVIF/RTSP)
• Built-in motion detection and video analytics
• Remote access via Ajax mobile and desktop apps
• Gigabit Ethernet connection (10/100/1000 Mbps)
• Local viewing via HDMI without internet
• Secure data transmission with access control and encryption
• Designed for indoor use (IP20 rated)
