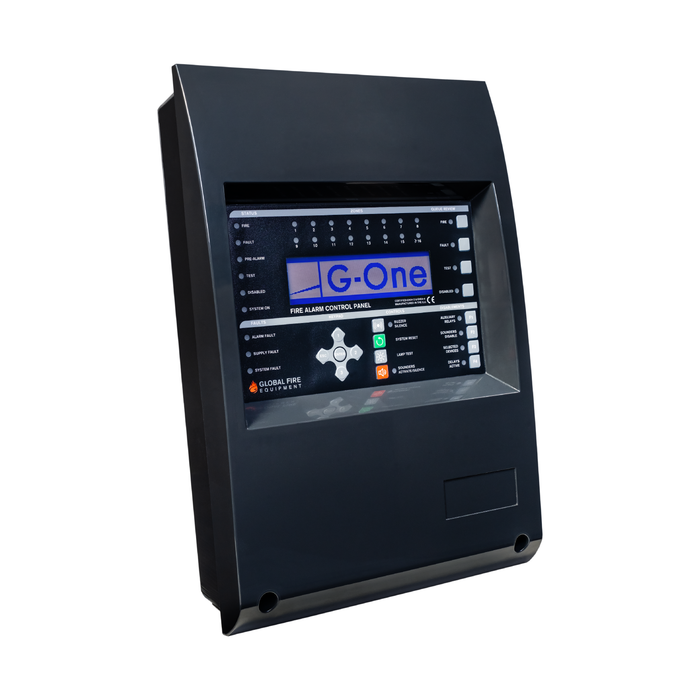

Global Fire G-ONE 1 Loop Addressable Fire Alarm Control Panel – G-1 Black
The Global Fire G-ONE is an addressable fire alarm control panel designed for single-loop installations where reliability and performance are essential. CPR certified to EN54-2 and EN54-4, this panel supports up to 250 addressable devices on one loop, making it suitable for shops, offices, schools, and a wide range of commercial and light industrial settings. It can be either surface or recess mounted and features a high-resolution, backlit graphical LCD display for intuitive programming and system monitoring.
The panel uses a high-integrity digital communication protocol and supports Chameleon peer-to-peer networking, allowing up to 32 G-ONE or compatible panels to be connected in a resilient network. With built-in cause-and-effect programming and automatic self-learn functionality, the G-ONE makes installation and configuration easier while providing dependable fire detection and alarm control
Key Features
- Addressable single loop fire alarm control panel (non-expandable)
- Supports up to 250 devices on one loop
- 900 mA high-integrity loop with digital communication
- Networkable with up to 32 G-ONE, GEKKO, OCTO+ or NODE+ panels
- Chameleon peer-to-peer network communications
- High-resolution backlit graphical LCD display
- Automatic self-learn facility for faster commissioning
- Supports connection via RS422, Fibre-Optic or TCP/IP for network/expansion
- Compatible with ZEOS, GFE and Apollo digital analogue addressable protocols
- 2 fire output relays and 1 fault relay (NC)
- 384 programmable network zones and 512 alarm groups
- Event log capacity 10,000 events
- CPR certified (EN54-2 & EN54-4) for control and power supply performance
