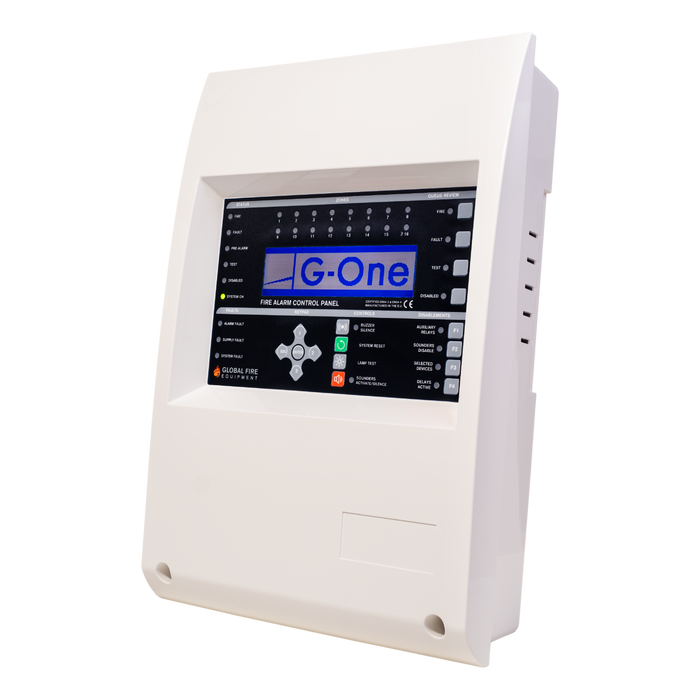

Global Fire G-ONE 1 Loop Addressable Fire Alarm Control Panel – G-ONE
The Global Fire G-ONE is a versatile addressable fire alarm control panel designed for single loop applications where affordability and performance matter. This panel supports up to 250 addressable devices on one loop and can be surface or recess mounted, making installation flexible for a wide range of buildings including shops, offices, schools and restaurants.
Equipped with a high-contrast graphical LCD display and intuitive controls, the G-ONE offers straightforward programming and system monitoring. It can be networked with up to 32 compatible Global Fire range panels using the Chameleon peer-to-peer communication protocol, which improves resilience and supports larger distributed systems when needed. Fully CPR certified to EN54-2 and EN54-4, this panel meets European fire safety standards for control and power supply equipment.
Key Features
- Addressable fire alarm control panel with single loop (non-expandable)
- 900 mA high-integrity loop supporting up to 250 devices
- Can network up to 32 G-ONE, GEKKO, OCTO+ or NODE+ panels
- Backlit graphical LCD display for clear system status and navigation
- Supports Chameleon peer-to-peer multi-master communications
- Automatic self-learn facility for faster commissioning
- Up to 384 programmable network zones and 512 alarm groups
- 2 fire output relays (change-over) and 1 fault relay (NC)
- Compatible with ZEOS and GFE
- Event log stores up to 10,000 events
- CPR certified to EN54-2 & EN54-4 for control and power supply performance
