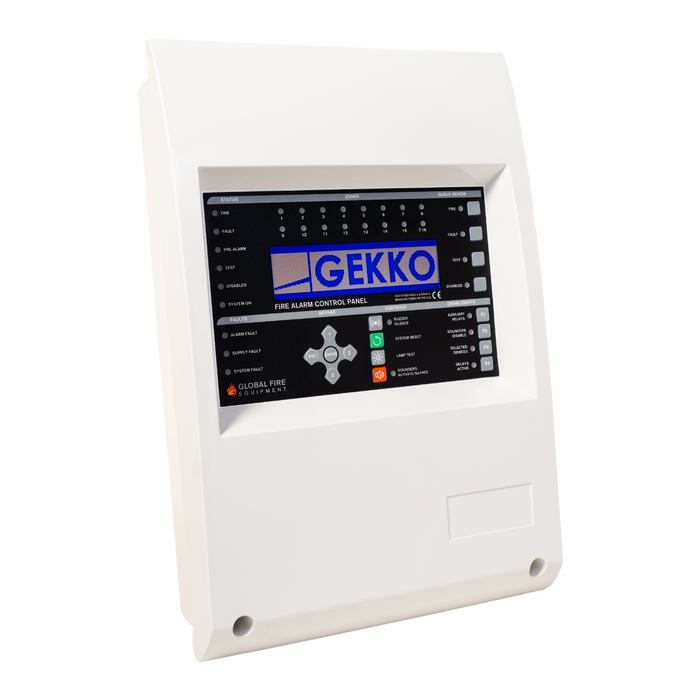

Global Fire GEKKO-2 2 Loop Addressable Fire Alarm Control Panel – GEKKO-2
The Global Fire GEKKO-2 is a robust addressable fire alarm control panel designed for medium to large fire detection systems. As part of the GEKKO range the successor to the trusted JUNIOR panel this model features two onboard addressable loops and can support up to 250 devices per loop, making it ideal for commercial buildings, schools, offices and industrial applications. The panel includes a backlit graphical LCD display for intuitive programming and status monitoring, and it supports network connectivity with repeaters and other control panels via multiple interfaces. With programmable zones, configurable outputs and comprehensive event logging, the GEKKO-2 offers powerful fire control performance in a flexible and expandable platform.
Key Features
- Addressable fire alarm control panel with two loops fitted (expandable up to 4)
- Supports up to 250 addressable devices per loop (125 address limit)
- Networkable via RS422, fibre-optic or TCP/IP interfaces
- Compatible with OCTO+ and NODE+ panel ranges
- Backlit graphical LCD display (240 x 64 pixel) for system status and navigation
- 384 fully programmable zones and 512 programmable sounder groups
- 2 fire output relays (change-over) and 1 fault relay (NC)
- 2 conventional alarm outputs (individually programmable)
- Continuous monitoring of both detection loops for integrity
- Event log holding 10,000 entries
- Supports ZEOS protocol and GFE ancillary modules
- Multi-language support and programming via keypad or PC software
- CPR certified to EN54-2, EN54-4 and EN54-13 for control and power supply performance
