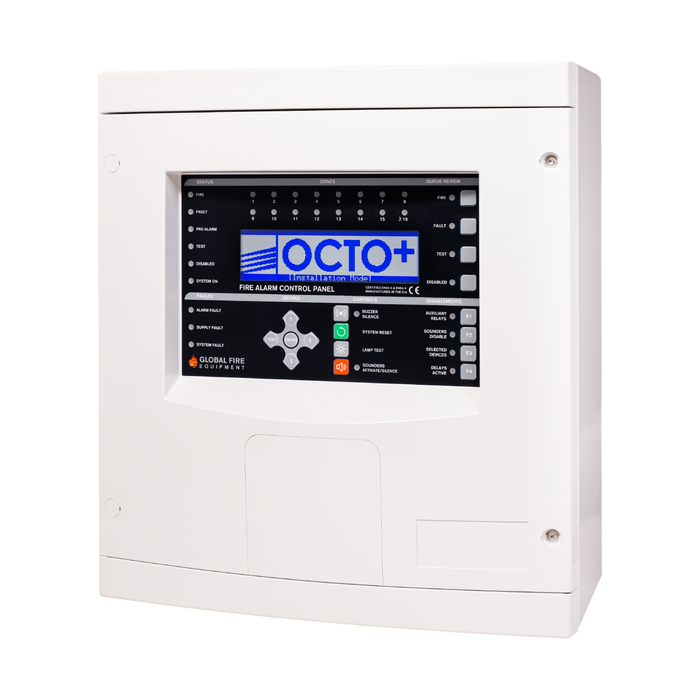

Global Fire OCTO-2 2 Loop Addressable Fire Alarm Control Panel – OCTO-2

The Global Fire OCTO-2 is a professional addressable fire alarm control panel with two detection loops, designed to provide reliable fire monitoring and alarm signalling for medium to large buildings. Built on the proven Chameleon Network architecture, this panel supports advanced peer-to-peer multi-master networking for resilient system performance. Each loop can support a large number of addressable devices, making the panel suitable for applications such as commercial buildings, schools, offices and industrial sites. The OCTO-2 offers user-friendly interfaces, strong networking options, extensive programming flexibility and solid compliance with fire safety standards.

 Key Features

• Addressable fire alarm control panel with 2 loops (expandable to 4)
• Up to 250 devices per loop (125 addressable device limit per loop)
• Chameleon peer-to-peer multi-master networking support for up to 32 connected panels
• Networkable via RS422, fibre-optic or Ethernet (TCP/IP)
• Built-in fire and fault relays
• Two programmable conventional alarm outputs
• Loops monitored for integrity with high reliability
• Backlit graphical LCD display for clear system status and multi-language support
• Cause-and-effect programming and configuration via keypad or PC software
• Supports repeater panels and remote access options
• Large system capacity with up to 384 programmable zones, 512 sounder groups, and 512 I/O groups
• Event log stores up to 10,000 events
