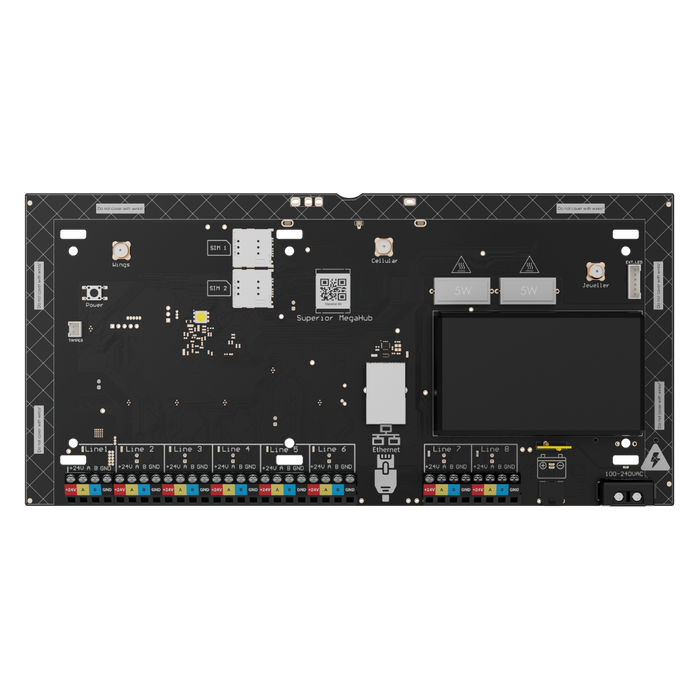

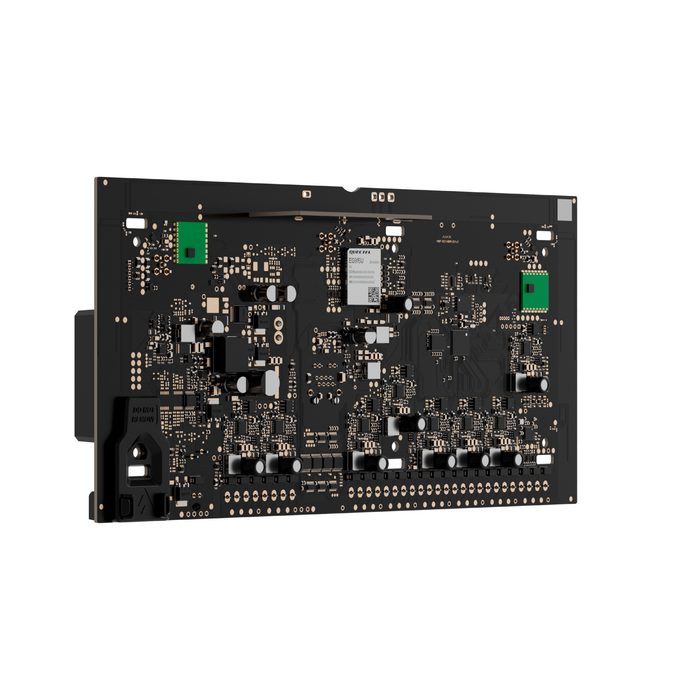

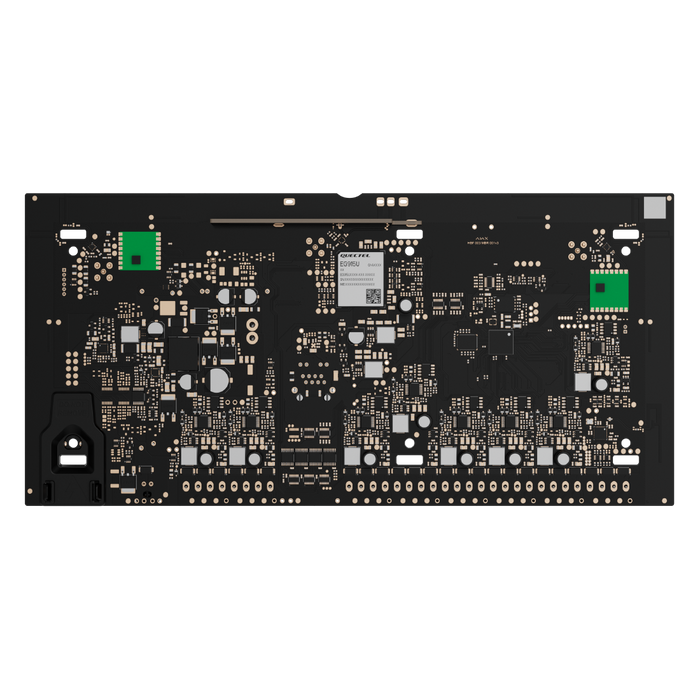

Ajax Superior MegaHub Hybrid Control Panel (Without Casing) – (AJA-160815)
*Fibra can only be activated by engineers who have completed the Ajax Fibra training course*
The Ajax Superior MegaHub (Without Casing) is an enterprise-level hybrid security control panel designed for very large and complex installations. Supplied as a board-only unit, it is intended for installation داخل a compatible Ajax enclosure, allowing flexible system design for professional projects.
Combining Fibra wired technology with Superior Jeweller wireless communication, the MegaHub supports a wide range of devices within a single system, delivering reliable, encrypted communication across large sites. With built-in Ethernet, Wi-Fi and dual SIM (2G/LTE) connectivity, it ensures constant system communication with automatic channel switching for maximum reliability.
Designed for high-security environments such as industrial facilities, campuses and multi-building sites, the MegaHub offers powerful scalability, advanced automation and full remote control through Ajax applications.
Features:
- Hybrid control panel supporting Fibra (wired) and Superior Jeweller (wireless) devices
- Supports up to 999 connected devices
- Designed as a board-only unit for installation in Ajax Case enclosures
- Built-in Ethernet, Wi-Fi and dual SIM (2G/LTE) connectivity
- Automatic switching between communication channels for reliability
- Up to 100 security groups and 100 automation scenarios
- Supports up to 1000 users and 500 rooms
- Wired communication via Fibra with up to 8 lines
- Fibra communication range up to 2000 m
- Wireless communication range up to 2000 m (open space)
- Supports ring, tree and radial wiring topologies
- Photo verification support with compatible Ajax detectors
- Advanced anti-sabotage protection including tamper and jamming detection
- Backup battery support with up to 60 hours operation
- Grade 3 certified for high-security installations
