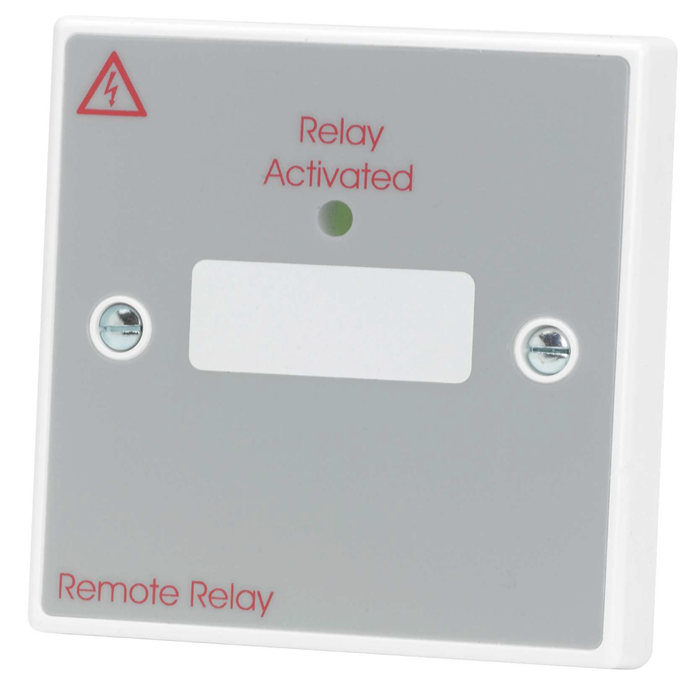

C-TEC 24V 5A Relay On A Plate, Single Gang-(CTEC-BF376)
The C-TEC BF376 24V 5A Relay On A Plate is a general-purpose, double-pole polarised relay designed for use with 24V fire alarm systems. This compact single-gang relay provides a reliable method of interfacing a fire alarm system with external equipment and is suitable for applications where a switched output is required. The BF376 is supplied on a white PVC plate and incorporates a high-intensity red LED to clearly indicate when the relay is active.
Designed for versatility, the C-TEC BF376 relay can be connected to a suitable fire alarm control panel relay output or a standard polarised fire alarm sounder circuit. It can be used to operate equipment such as door retaining magnets, roller shutter doors and other compatible auxiliary devices. The relay provides changeover contacts with NC, C and NO connections, with contacts rated up to 5A resistive or 2A inductive at 24V DC and 240V AC.
The BF376 is designed for straightforward mounting on a standard UK 25mm single-gang flush or surface back box, making it a practical choice for fire alarm ancillary applications. With an IP40 rating, an operating temperature range of -10°C to +60°C, and compact dimensions of 85 x 85 x 27mm, the C-TEC BF376 is a dependable relay solution for professional fire alarm and building safety systems.
Key Features
- 24V DC polarised relay designed for fire alarm systems
- 5A contact rating for resistive loads at 24V DC and 240V AC
- 2A contact rating for inductive loads at 24V DC and 240V AC
- Double-pole relay configuration for versatile switching applications
- High-intensity red LED indicates when the relay is activated
- Can connect to a fire alarm control panel relay output
- Can be connected to a standard polarised fire alarm sounder circuit
- Suitable for operating door retaining magnets and roller shutter doors
- Fits standard UK 25mm single-gang flush or surface back boxes
- Compact 85 x 85 x 27mm white PVC single-gang plate design with IP40 protection
