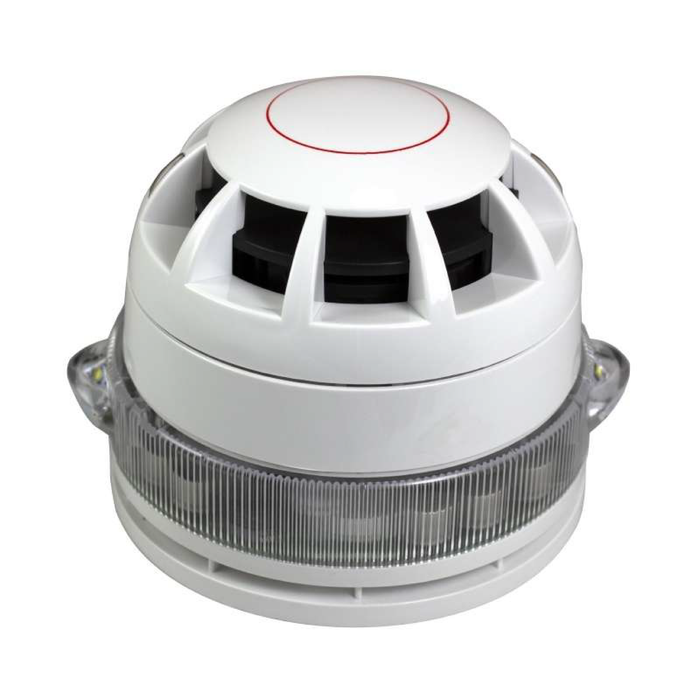

C-TEC CAST Base Voice Sounder C Class VAD White-(CTEC-CA457A/W)
The C-TEC CAST Base Voice Sounder C Class VAD White (CTEC-CA457A/W) is an advanced addressable fire alarm voice sounder and visual alarm device designed to provide clear audible and visual fire alarm notification. Featuring C-3-8 VAD coverage, the device combines highly intelligible voice messaging with a visual alarm function, helping to effectively alert occupants during a fire emergency. It is designed for use with C-TEC CAST protocol addressable fire alarm panels, including compatible XFP and ZFP systems.
Designed for ceiling-mounted applications, the CA457A/W provides a practical and discreet solution for modern addressable fire alarm systems. It features an integrated short-circuit loop isolator, four selectable volume levels and six selectable voice messages with tones, including evacuation, alert, all-clear and system test messages. The sounder and VAD can also be configured to operate independently where supported by the connected fire alarm panel.
The C-TEC CA457A/W CAST C-3-8 Base Voice Sounder VAD offers efficient operation with a typical quiescent current of 470µA and a typical alarm current of 26.5mA at maximum volume and brightness. With a 170m³ C-Class coverage volume, white finish and IP21C rating, it is well suited to a wide range of indoor commercial and building fire alarm applications. The base can also be used as a stand-alone device with the appropriate optional locking cap or incorporated into a CAST detector/base arrangement.
Key Features
- C-TEC CAST addressable voice sounder and VAD
- C-3-8 VAD classification for effective visual alarm coverage
- Voice sounder and visual alarm device combined in one unit
- Highly intelligible voice messages for clear emergency communication
- Six selectable messages with tones, including evacuation, alert, all-clear and system test messages
- Four selectable volume levels for flexible sound output configuration
- Integrated short-circuit loop isolator for added system resilience
- Group addressing facility allows multiple devices to operate simultaneously
- Ceiling-mounted design with a discreet white finish
- Compatible with C-TEC CAST addressable fire alarm panels, including XFP/ZFP CAST systems
