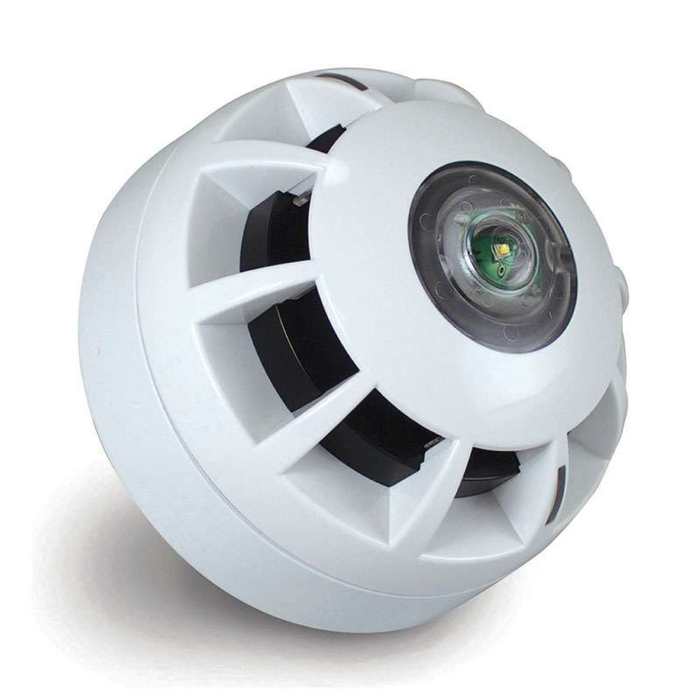

C-TEC CAST Compact Ceiling Sounder VAD White-(CTEC-CA451A/SW)
The C-TEC CAST Compact Ceiling Sounder VAD White (CTEC-CA451A/SW) is an addressable combined sounder and visual alarm device designed for use with C-TEC CAST addressable fire alarm systems. Providing both a powerful audible alarm and high-efficiency visual warning, this compact ceiling-mounted device helps deliver clear fire alarm notification in commercial, industrial and public buildings. The CA451A/SW provides an impressive 96dB(A) sound output at 1 metre and is certified to the relevant requirements of EN 54-3, EN 54-17 and EN 54-23.
The CAST Compact Sounder VAD combines audible and visual alarm functionality in a discreet, space-saving design. It provides C-3-8 light distribution when ceiling mounted and can also provide W-3-3.1 light distribution when wall mounted. The device features four selectable volume levels and 31 selectable tones, allowing compatible CAST systems to configure alarm characteristics to suit different applications. Its onboard short-circuit loop isolator helps maintain loop integrity and supports the robust distributed architecture of the CAST fire alarm system.
With its 102mm diameter x 63mm deep compact housing, white finish and low typical quiescent current of approximately 460µA, the C-TEC CA451A/SW is well suited to modern addressable fire alarm applications where reliable notification and a neat appearance are important. Group addressing allows multiple devices to operate simultaneously, while its IP21C Type A rating makes it suitable for indoor applications. For installers and fire alarm professionals sourcing genuine C-TEC CAST equipment, the CA451A/SW provides a dependable combined sounder and VAD solution.
Key Features
- C-TEC CAST compatible addressable fire alarm device
- Combined 96dB(A) sounder and visual alarm device (VAD)
- Designed for ceiling mounting
- C-3-8 rated light distribution when ceiling mounted
- Can provide W-3-3.1 light distribution when wall mounted
- EN 54-3, EN 54-17 and EN 54-23 certified
- Built-in short-circuit loop isolator
- 4 selectable volume levels and 31 selectable tones
- Group addressing facility for simultaneous device operation
- Compact 102mm diameter x 63mm deep white housing with IP21C Type A rating
