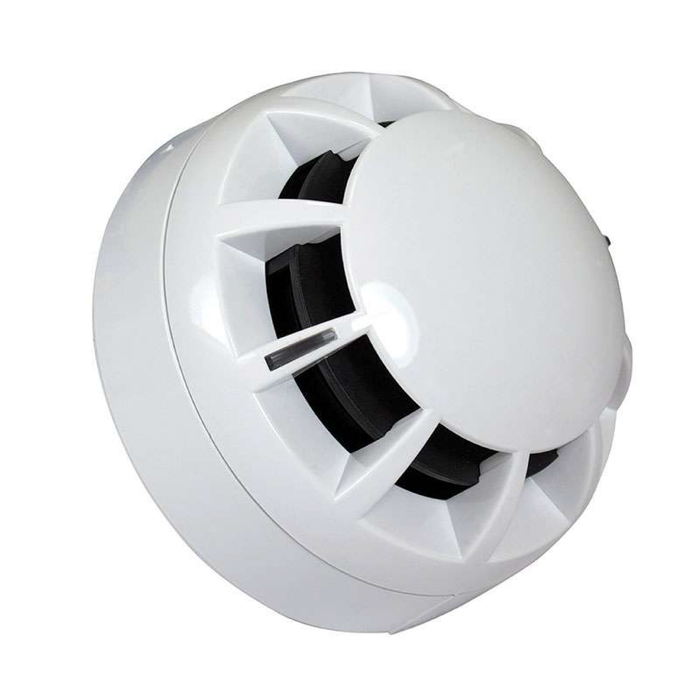

C-TEC CAST Compact Ceiling Sounder - White-(CTEC-CA450A/SW)
The C-TEC CAST Compact Ceiling Sounder – White (CTEC-CA450A/SW) is an addressable, loop-powered fire alarm sounder designed to provide a clear and powerful audible warning during a fire alarm condition. Part of C-TEC’s CAST Compact range, this white ceiling-mounted sounder delivers an impressive 96dB(A) sound output at 1 metre, making it suitable for a wide variety of commercial, industrial and public-sector fire alarm applications.
Designed for compatibility with C-TEC CAST addressable fire alarm panels, the CA450A/SW incorporates an onboard short-circuit loop isolator for enhanced system resilience. It features four selectable volume levels and 31 selectable tones, providing flexibility when configuring the audible alarm characteristics of a fire detection system. The device also supports group addressing, allowing multiple sounders to be operated simultaneously when required.
With its compact 102mm diameter x 63mm deep design and white finish, the C-TEC CAST Compact Ceiling Sounder offers a discreet solution for modern fire alarm installations where reliable audible notification and clean aesthetics are important. The CA450A/SW is LPCB certified to EN54-3 and EN54-17 and Kiwa Telefication certified to EN54-13, while its IP21C Type A rating makes it suitable for appropriate indoor environments.
Key Features
- C-TEC CAST Compact addressable ceiling sounder
- 96dB(A) sound output at 1 metre
- Loop-powered addressable fire alarm device
- LPCB certified to EN54-3 and EN54-17
- Kiwa Telefication certified to EN54-13
- Onboard short-circuit loop isolator
- Four selectable volume levels
- 31 selectable alarm tones
- Group addressing facility for simultaneous operation
- Compact white design measuring 102mm diameter x 63mm deep
- IP21C Type A rated
- Typical alarm current of 5.5mA at 24–40V DC
- Typical quiescent current of 460µA
- Designed for compatibility with C-TEC CAST fire alarm panels
