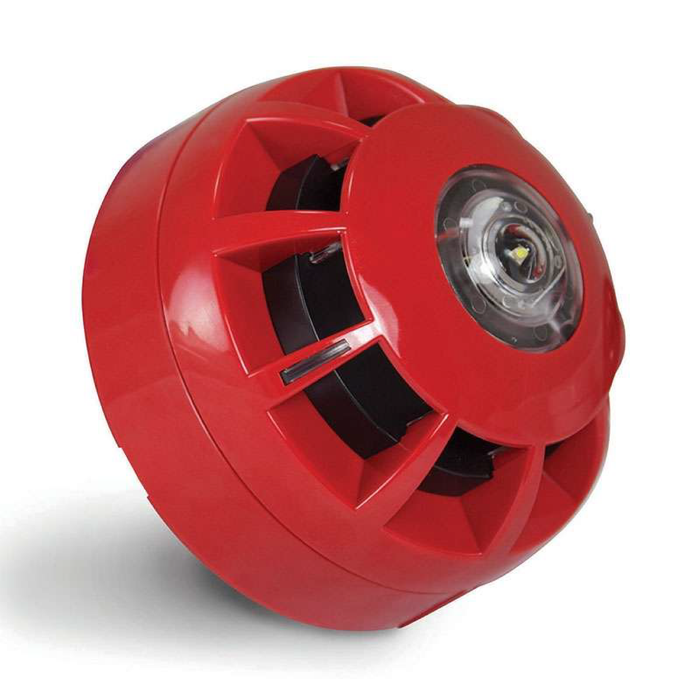

C-TEC CAST Compact Wall Sounder VAD Red-(CTEC-CA451A/SR)
The C-TEC CAST Compact Wall Sounder VAD Red (CTEC-CA451A/SR) is an addressable combined sounder and Visual Alarm Device (VAD) designed for use with C-TEC CAST fire alarm systems. Combining a powerful audible alarm with a high-visibility visual warning in one compact unit, it provides an effective way of alerting building occupants during a fire alarm condition. The red shallow-base design makes it particularly suitable for wall-mounted fire alarm applications where clear alarm indication and a neat appearance are required.
Offering an impressive 96dB(A) sound output at 1 metre, the CA451A/SR provides a strong audible alarm while its integrated VAD provides W-3-3.1 light distribution when wall mounted. The device also features four selectable volume levels and 31 selectable tones, providing flexibility when configuring a CAST addressable fire alarm system. Group addressing allows multiple devices to operate simultaneously where required, helping provide coordinated audible and visual alarm notification.
The C-TEC CA451A/SR incorporates an onboard short-circuit loop isolator and is LPCB certified to EN54-3, EN54-17 and EN54-23, with Kiwa Telefication certification to EN54-13. With its compact 102mm diameter x 63mm depth housing and IP21C Type A rating, it is a practical choice for compatible commercial and life-safety fire alarm systems. The device is specifically designed for C-TEC CAST-compatible fire alarm panels, including the CAST XFP and ZFP ranges.
Key Features
- C-TEC CAST compatible addressable wall sounder VAD
- Combined sounder and Visual Alarm Device (VAD) in one compact unit
- 96dB(A) sound output at 1 metre
- W-3-3.1 light distribution when wall mounted
- LPCB certified to EN54-3, EN54-17 and EN54-23
- Kiwa Telefication certified to EN54-13
- Onboard short-circuit loop isolator
- 4 selectable volume levels and 31 selectable tones
- Group addressing facility for simultaneous operation of multiple devices
- Compact red shallow-base design, measuring 102mm diameter x 63mm deep
- IP21C Type A rated for suitable indoor fire alarm applications
