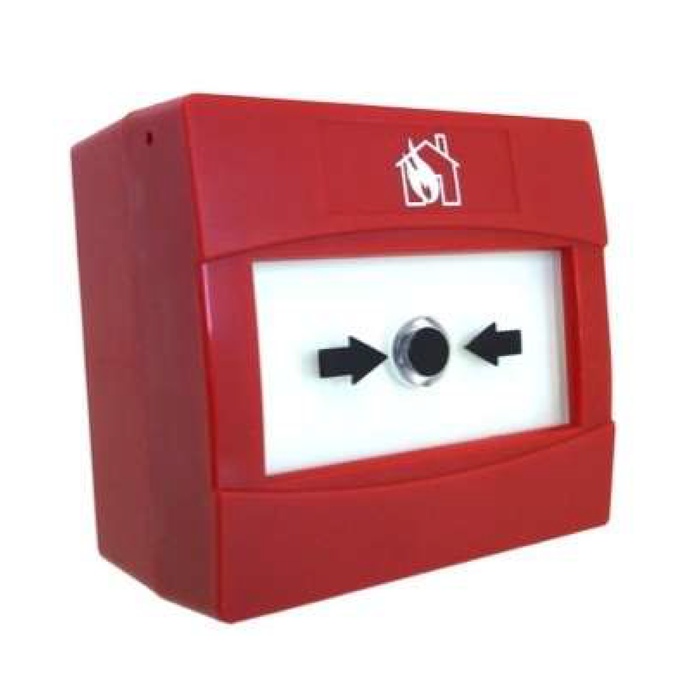

C-TEC CAST Manual Call Point - Red-(CTEC-CA470)
C-TEC CAST Manual Call Point – Red (CTEC-CA470) is a high-quality, addressable manual call point designed for use with C-TEC’s CAST protocol fire alarm systems. The CA470 is compatible with C-TEC XFP and ZFP CAST addressable fire alarm panels and provides a reliable means of manually triggering a fire alarm when an emergency is detected. Its robust red housing provides clear visual identification within commercial, industrial and other fire alarm environments.
Designed for dependable operation, the C-TEC CA470 manual call point features a smooth-action resettable element that provides the familiar feel of breaking glass without requiring replacement glass after activation. An onboard short-circuit loop isolator helps maintain system integrity, while the integrated red LED alarm ring clearly indicates activation. The photoluminescent operating window can remain visible for up to five minutes in poor lighting conditions, helping users quickly identify the operating area.
The C-TEC CAST CA470 red manual call point can be surface or flush mounted, offering flexible positioning within compatible addressable fire alarm systems. It operates from the CAST loop at 22–40V DC and has a typical alarm current of 5mA. The unit is IP42 rated and certified to relevant EN54 requirements, including EN54-11 and EN54-17, making it a strong choice for installers and fire alarm professionals looking for a dependable C-TEC addressable manual call point.
Key Features
- C-TEC CAST addressable manual call point for fire alarm systems
- Red finish for clear identification as a manual fire alarm activation device
- Compatible with C-TEC XFP and ZFP CAST addressable fire alarm panels
- LPCB certified to EN54-11 and EN54-17
- Onboard short-circuit loop isolator for improved loop protection
- Resettable operating element eliminates the need for replacement glass after activation
- Red LED alarm ring illuminates the call point face when activated
- Photoluminescent operating window remains visible for up to 5 minutes in poor lighting
- Surface or flush mounting for flexible installation options
- 22–40V DC loop powered, with approximately 5mA typical alarm current
