C-TEC CAST Manual CASTll Point Surface Ip67 Red-(CTEC-CA47067)

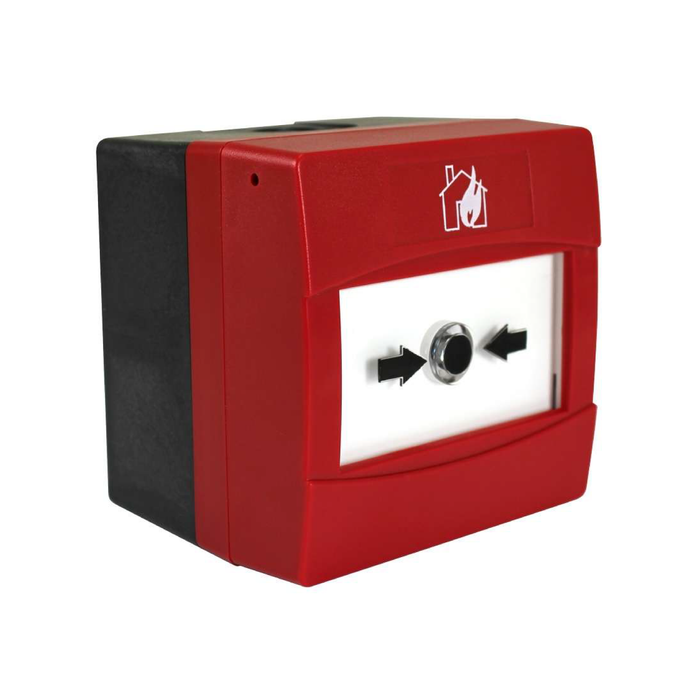

The C-TEC CAST CA47067 IP67 Red Manual Call Point is a robust, weather-resistant addressable manual call point designed for use with C-TEC’s XFP and ZFP CAST protocol fire alarm control panels. Featuring an IP67-rated surface-mounting design, this red manual call point is well suited to environments where protection against water and dust ingress is important. The CA47067 is LPCB certified to EN54 Parts 11 and 17, making it a dependable choice for compatible CAST addressable fire alarm systems.
Designed with reliability and ease of operation in mind, the C-TEC CA47067 incorporates a smooth-action resettable operating element that provides the familiar feel of breaking glass without requiring replacement glass after activation. A highly visible red LED alarm ring illuminates the face when the call point is activated, while the photoluminescent operating window remains visible for up to five minutes in poor lighting conditions. The unit also features an onboard short-circuit loop isolator, helping maintain system integrity on compatible CAST addressable fire alarm loops.
The C-TEC CAST IP67 Manual Call Point CA47067 is loop powered and operates between 22–40V DC, with a typical alarm current of 5mA and typical quiescent current of 370µA. Its red ABS polycarbonate construction, IP67 protection and surface-mounted configuration make it particularly suitable for demanding applications requiring a durable manual fire alarm activation point. Supplied with a reset/back-box removal key and “Not in Use” label, the CA47067 is an excellent addition to compatible C-TEC CAST addressable fire alarm systems.
Key Features
- C-TEC CAST addressable manual call point for compatible fire alarm systems
- IP67-rated construction for enhanced protection against dust and water ingress
- Red surface-mounting design for clear identification and accessibility
- Compatible with C-TEC XFP and ZFP CAST protocol addressable fire panels
- LPCB certified to EN54 Parts 11 & 17
- Integrated short-circuit loop isolator
- Smooth-action resettable operating element mimics the feel of breaking glass
- Red LED alarm ring provides clear visual activation indication
- Photoluminescent operating window remains visible for up to 5 minutes
- Loop powered at 22–40V DC, with approximately 5mA typical alarm current
