C-TEC CAST Manual Invacuation CASTll Point Surface Blue-(CTEC-CA470B/LD)

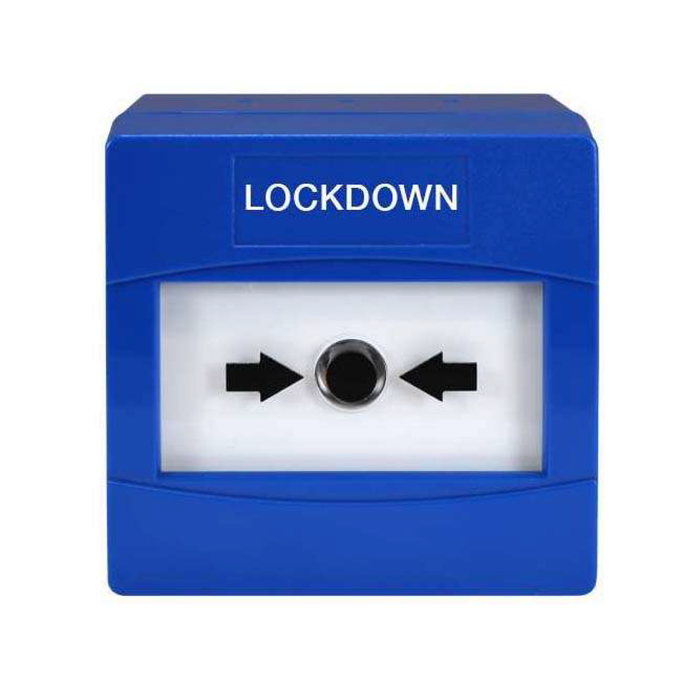

The C-TEC CAST Manual Invacuation/Lockdown Point Surface Blue (CA470B/LD) is a high-quality addressable manual call point designed for invacuation and lockdown applications. Finished in durable blue ABS plastic, this surface-mounted call point provides a clearly identifiable method of signalling an incident requiring a lockdown procedure. It is designed for use with C-TEC XFP and ZFP CAST protocol addressable fire alarm panels, making it a suitable choice for modern fire and emergency communication systems.
The CA470B/LD CAST Blue Lockdown Call Point features an onboard bi-directional short-circuit loop isolator and a smooth-action resettable operating element that provides a familiar break-glass-style activation feel without requiring replacement glass after operation. A red LED alarm ring illuminates the face of the unit when activated, providing clear visual confirmation that a signal has been sent. Its photoluminescent operating window can remain visible for up to five minutes in poor lighting conditions, helping the device remain easy to identify when required.
Designed for professional fire alarm, invacuation and lockdown systems, the C-TEC CA470B/LD operates from the CAST addressable loop and supports a 22–40V DC operating range. The unit is supplied with a reset/back-box removal key and features a compact surface-mounted design measuring approximately 87mm W x 88mm H x 62mm D, including its back box. For installers and security professionals sourcing dependable C-TEC CAST equipment, the CA470B/LD provides a purpose-designed blue lockdown call point for suitable emergency protection applications.
Key Features
- C-TEC CAST CA470B/LD addressable blue lockdown/invacuation call point
- Designed for lockdown and invacuation applications
- Compatible with C-TEC XFP and ZFP CAST addressable fire panels
- High-quality blue ABS plastic construction
- Surface-mounted design for straightforward positioning
- Integrated bi-directional short-circuit loop isolator
- Smooth-action resettable operating element mimics breaking glass
- Red LED alarm ring provides visual activation indication
- Photoluminescent operating window remains visible for up to 5 minutes
- Operates at 22–40V DC with approximately 5mA typical alarm current
