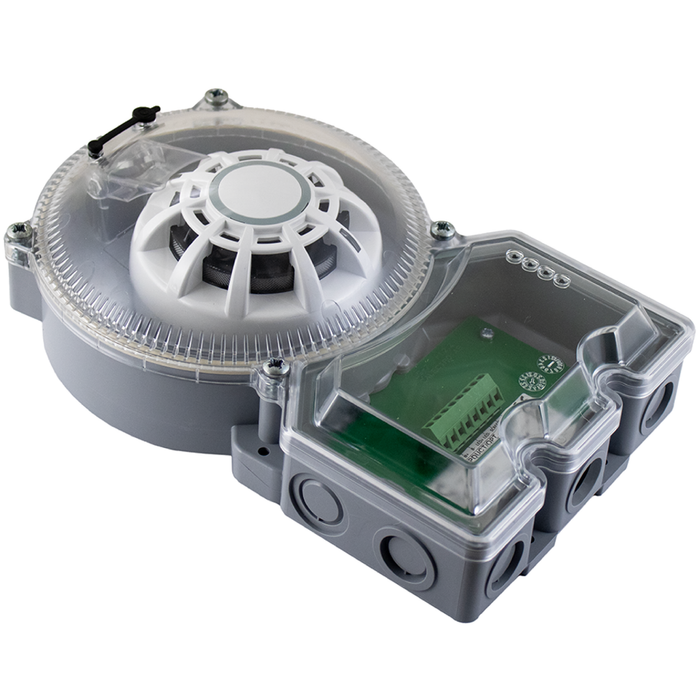

C-TEC CAST Pro Duct Smoke Detection Kit C/W CAST Pro Smoke Detector And Base-(CTEC-CPDUCT/OPT)
C-TEC CAST-PRO Duct Smoke Detection Kit – CPDUCT/OPT
The C-TEC CAST-PRO Duct Smoke Detection Kit (CTEC-CPDUCT/OPT) is an addressable duct smoke detection solution designed to identify smoke within air-handling and ventilation ductwork. The kit incorporates a C-TEC CAST-PRO CP416 optical smoke detector and CA408 CAST base housed within a durable duct detector enclosure, providing reliable smoke monitoring where conventional ceiling-mounted fire detectors may not be suitable.
Designed for compatibility with C-TEC XFP and ZFP CAST protocol addressable fire alarm panels, the CPDUCT/OPT samples air travelling through ductwork using a Venturi tube, allowing smoke to be detected as it passes through the ventilation system. The system is designed to operate across a wide range of airflow conditions, with the manufacturer stating suitability for airflow speeds from 0.5m/s to 20m/s when correctly configured with the appropriate Venturi tube.
The C-TEC CPDUCT/OPT duct smoke detector offers low current consumption, an onboard short-circuit loop isolator and highly visible red alarm indicators. It can be mounted horizontally or vertically on the top, bottom or side of suitable ductwork, making it a versatile choice for commercial buildings and fire alarm systems requiring addressable smoke detection within ventilation and air-handling systems.
Key Features
- C-TEC CAST-PRO duct smoke detection kit for ventilation and air-handling ductwork
- Includes CP416 CAST-PRO optical smoke detector and CA408 CAST base
- Designed to detect smoke within airflow through ductwork
- Compatible with C-TEC XFP and ZFP CAST addressable fire alarm panels
- Air sampling system uses a Venturi tube for continuous duct air monitoring
- Suitable for airflow speeds from 0.5m/s to 20m/s when correctly configured
- Two selectable smoke detection modes – normal and high sensitivity
- Built-in short-circuit loop isolator
- <1mA alarm current and approximately 570µA quiescent current at 40V DC
- IP54-rated duct detector housing with 360° visible red alarm indication
