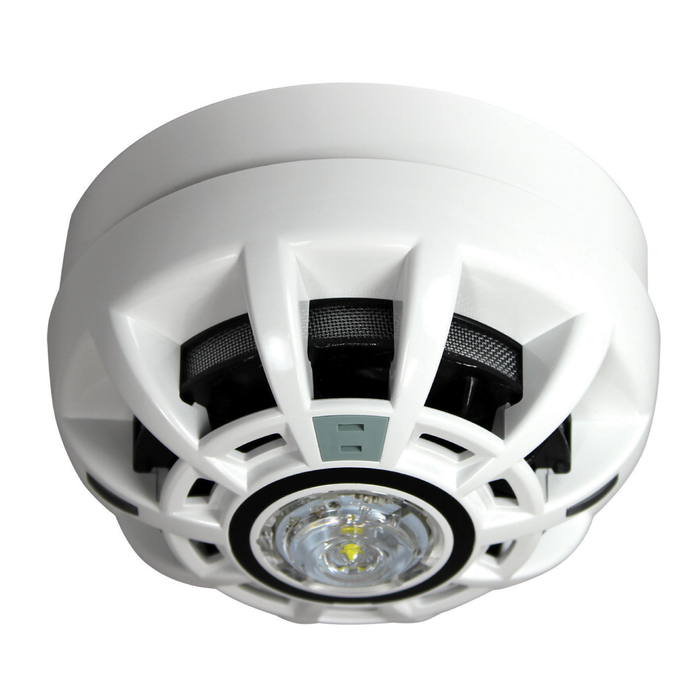

C-TEC CAST Pro Smoke, Heat, Co, Detector With Tone Sounder And VAD-(CTEC-CP411TV)

The C-TEC CAST-PRO CP411TV is an advanced multi-sensor fire detector combining smoke, heat and carbon monoxide (CO) detection, a powerful 92dB(A) tone sounder and an integrated C-3-9.4 white Visual Alarm Device (VAD) in one compact unit. Designed for modern addressable fire alarm systems, this intelligent detector provides rapid fire detection, effective false-alarm resistance and clear audible and visual alarm indication. The CP411TV is compatible with C-TEC ZFP and XFP CAST protocol addressable fire panels, making it an excellent choice for commercial, industrial and other life-safety applications.

Featuring C-TEC's innovative MASC™ (Miniature Advanced Smoke Detection Chamber) and AFFIRM™ algorithms, the CAST-PRO CP411TV is engineered to distinguish genuine fire conditions while helping minimise unwanted alarms. The detector offers 12 programmable detection modes, allowing smoke, heat and CO detection characteristics to be selected according to the requirements of the protected environment. The default Mode 10 combines normal-sensitivity smoke detection, A2 heat detection and CO detection to EN54-31.

The CP411TV CAST-PRO detector is certified to relevant EN54 standards, including EN54-3, EN54-5, EN54-7, EN54-13, EN54-17, EN54-23, EN54-29 and EN54-31. Its integrated white VAD provides synchronised visual alarm indication, while two ultra-bright red LED strips offer 360° visibility. With an onboard short-circuit loop isolator, drift compensation, programmable alarm tones and compatibility with the CA408 CAST detector base, the CP411TV provides a sophisticated all-in-one solution for addressable fire detection and alarm systems.

Key Features

• 3-in-1 fire detection: Smoke, heat and CO multi-sensor detection in one device.
• Integrated 92dB(A) tone sounder for powerful audible alarm indication.
• C-3-9.4 white VAD providing integrated visual alarm indication.
• MASC™ smoke detection chamber designed for rapid fire detection and improved false-alarm resistance.
• AFFIRM™ detection algorithms enhance reliable fire detection while helping reduce unwanted alarms.
• 12 programmable detection modes with different smoke, heat and CO detection settings.
• 360° visual indication using two ultra-bright red LED indicator strips.
• EN54 certified to multiple standards including EN54-3, 5, 7, 13, 17, 23, 29 and 31.
• Compatible with C-TEC ZFP and XFP CAST addressable fire panels.
• Built-in short-circuit loop isolator and drift compensation for enhanced system reliability.
