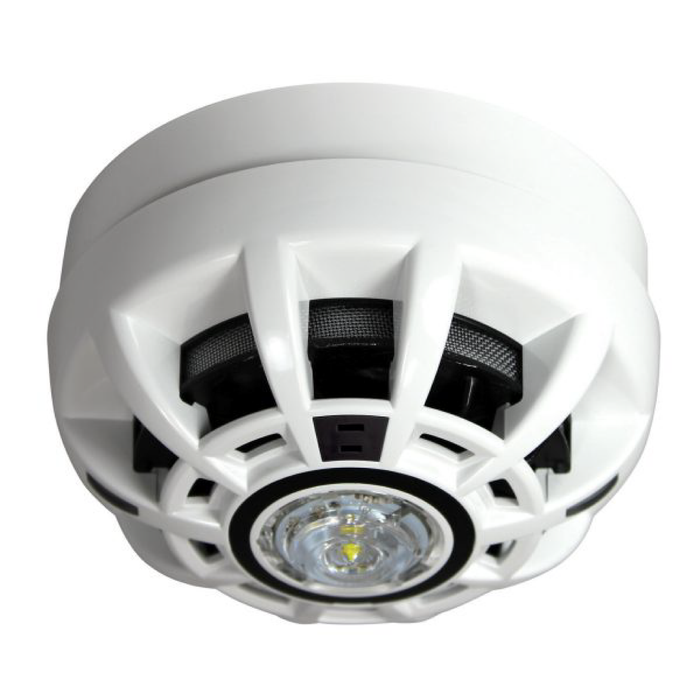

C-TEC CAST Pro Smoke, Heat, Co, Detector With Voice Sounder And VAD-(CTEC-CP411VV)

The C-TEC CAST Pro CP411VV is an advanced addressable fire detection device combining CO, smoke and heat detection, an 86dB(A) voice sounder and a C-3-9.4 white Visual Alarm Device (VAD) in one compact unit. Designed for C-TEC CAST addressable fire alarm systems, this multi-sensor detector provides fast and reliable fire detection while helping to reduce unwanted false alarms.

Using C-TEC's advanced MASC™ smoke detection chamber and intelligent detection algorithms, the CP411VV is designed to provide excellent tolerance to dust and environmental changes while maintaining effective fire detection performance. The detector features multiple selectable detection modes and sensitivities, allowing compatible CAST systems to optimise detector operation for different applications and conditions.

The CP411VV CAST Pro detector also incorporates a voice sounder with selectable messages, a synchronised white VAD and integral short-circuit loop isolation. Certified to relevant EN54 standards and compatible with C-TEC XFP and ZFP CAST protocol addressable fire alarm panels, it provides multiple fire alarm functions from a single installation point. The device requires a CA408 CAST detector base and is an excellent choice for commercial, industrial and other addressable fire alarm applications requiring integrated audible and visual notification.

Key Features

• CO, smoke and heat multi-sensor fire detector for comprehensive fire detection.
• Integrated 86dB(A) voice sounder for clear audible fire alarm notification.
• Integrated C-3-9.4 white VAD providing visual alarm indication.
• MASC™ advanced smoke detection chamber designed for improved false-alarm resistance.
• Multiple selectable detection modes and sensitivities for different applications.
• Six selectable voice messages and tones, including evacuation, alert, all-clear and test messages.
• Integral short-circuit loop isolator helps maintain system integrity.
• 360° red LED alarm indication using two ultra-bright LED strips.
• Compatible with C-TEC XFP and ZFP CAST addressable fire alarm panels.
• Certified to EN54-3, EN54-5, EN54-7, EN54-13, EN54-17, EN54-23, EN54-29 and EN54-31 by Kiwa Telefication.
