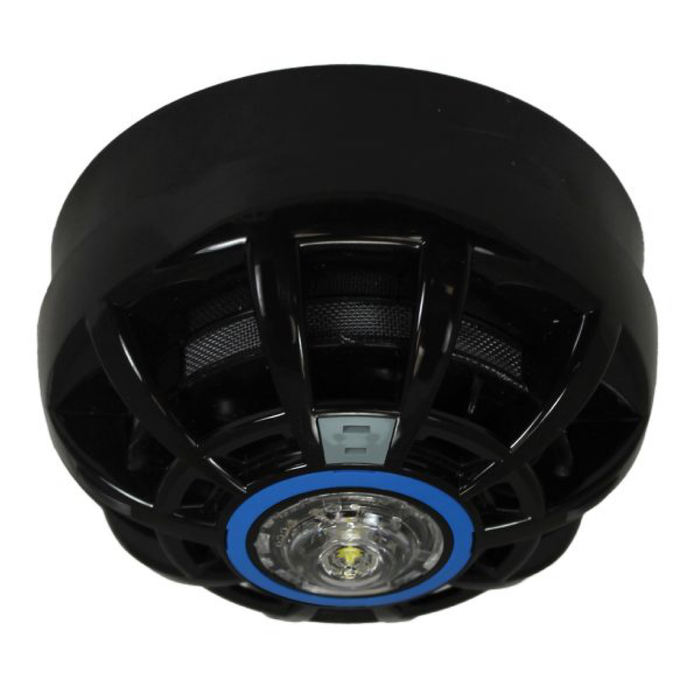

C-TEC CAST Pro Smoke, Heat Multisensor With Tone Sounder And VAD - Black-(CTEC-CP414BTV)
The C-TEC CAST Pro CP414BTV is an advanced addressable smoke and heat multisensor fire detector featuring an integrated 92dB(A) tone sounder and EN54-23 VAD in a discreet black housing. Combining multiple fire alarm functions within a single device helps provide rapid detection, clear audible notification and visual alarm indication while reducing the number of separate devices required.
Designed for C-TEC CAST protocol addressable fire alarm systems, the CP414BTV uses MASC™ smoke detection chamber technology and AFFIRM™ algorithms to provide high tolerance to false alarms while maintaining rapid response to genuine fire conditions. The detector offers multiple programmable detection modes and sensitivities, allowing the device to be configured for different operating requirements. Drift compensation and an integrated short-circuit loop isolator further enhance system reliability.
The C-TEC CP414BTV black multisensor is compatible with C-TEC XFP and ZFP CAST protocol addressable fire alarm panels and requires a CA408 CAST base. Its integrated C-3-9.4 white VAD provides visual alarm indication, while two ultra-bright red LED strips provide 360° alarm visibility. Certified to relevant EN54 standards, this compact CAST Pro device is an excellent choice for modern commercial and addressable fire alarm systems where detection, sounder and visual alarm functionality need to be combined in one unit.
Key Features
- Smoke and heat multisensor for combined fire detection
- Integrated 92dB(A) tone sounder for audible alarm notification
- Integrated C-3-9.4 EN54-23 white VAD for visual alarm indication
- Advanced MASC™ smoke detection chamber technology
- AFFIRM™ algorithms designed to reduce false alarms
- 8 programmable detection modes with different smoke and heat sensitivities
- Built-in drift compensation for consistent detector performance
- Integrated short-circuit loop isolator for enhanced system resilience
- 360° alarm visibility via dual ultra-bright red LED indicator strips
- Compatible with C-TEC XFP and ZFP CAST addressable fire alarm panels
