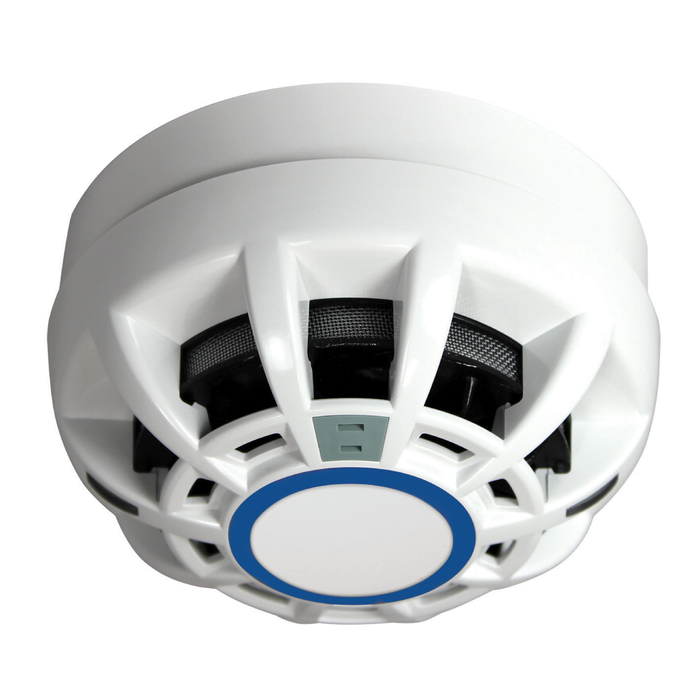

C-TEC CAST Pro Smoke, Heat Multisensor With Tone Sounder-(CTEC-CP414T)
C-TEC CAST Pro Smoke + Heat Multisensor with Tone Sounder (CTEC-CP414T) is an advanced addressable fire alarm device designed to provide reliable smoke and heat detection together with integrated audible alarm signalling. Combining multiple functions within a single compact unit, the CP414T can detect developing fire conditions quickly while helping to reduce unwanted alarms. Its integrated 92 dB(A) tone sounder provides a powerful audible warning when an alarm condition is detected.
The CAST Pro CP414T uses C-TEC’s MASC™ (Miniature Advanced Smoke Detection Chamber) and AFFIRM™ algorithms to improve tolerance to potential false alarm sources while maintaining effective fire detection. Multiple programmable detection modes and sensitivity settings allow the device to be configured for different fire detection requirements. The detector also incorporates drift compensation, two ultra-bright red LED indicator strips for 360° alarm visibility and an onboard short-circuit loop isolator.
Designed for use with C-TEC ZFP and XFP CAST protocol addressable fire panels, the CTEC-CP414T is a versatile choice for modern addressable fire alarm systems. The device is certified to relevant EN54 standards including EN54-3, EN54-5, EN54-7, EN54-13, EN54-17 and EN54-29, and requires a CA408 CAST base for connection. With smoke and heat detection plus an integrated tone sounder in one device, CAST Pro helps simplify system design while delivering intelligent fire detection and clear alarm notification.
Key Features
- Smoke and heat multisensor for comprehensive fire detection.
- Integrated 92 dB(A) tone sounder for clear audible alarm notification.
- MASC™ advanced smoke detection chamber designed for reliable smoke detection.
- AFFIRM™ algorithms help improve resistance to unwanted false alarms.
- Multiple programmable detection modes for different fire detection applications.
- Drift compensation helps maintain detector performance over time.
- Onboard short-circuit loop isolator for enhanced addressable loop protection.
- 360° alarm indication via two ultra-bright red LED indicator strips.
- Compatible with C-TEC ZFP and XFP CAST addressable fire panels.
- EN54 certified to EN54-3, EN54-5, EN54-7, EN54-13, EN54-17 and EN54-29.
