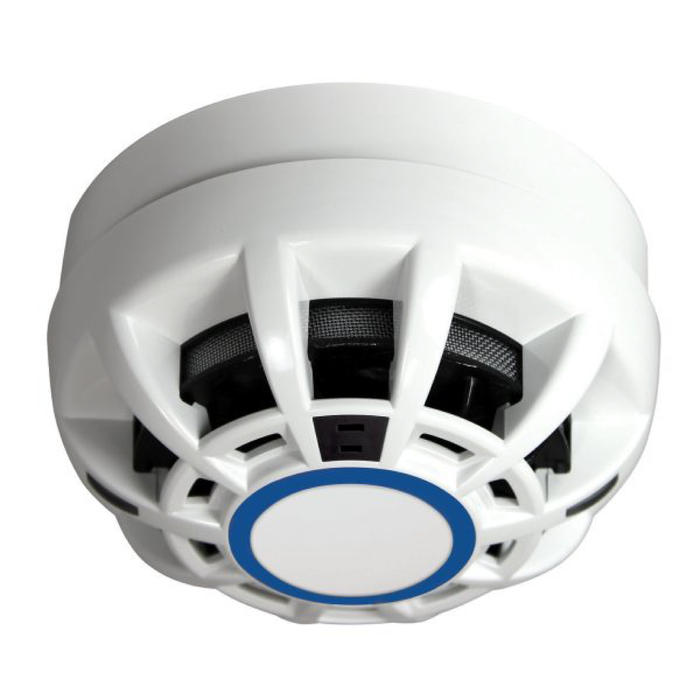

C-TEC CAST Pro Smoke, Heat Multisensor With Voice Sounder-(CTEC-CP414V)
The C-TEC CAST-PRO CP414V Smoke & Heat Multisensor with Voice Sounder is an advanced addressable fire detection device designed to provide reliable smoke and heat detection together with an integrated voice sounder. Combining multiple fire alarm functions within one compact unit, the CP414V can detect genuine fire conditions quickly while helping reduce unwanted and false alarms. It is designed for use with C-TEC XFP and ZFP CAST protocol addressable fire alarm panels, making it a highly capable choice for modern CAST fire alarm systems.
Featuring C-TEC's MASC™ (Miniature Advanced Smoke Detection Chamber) and sophisticated detection algorithms, the CP414V provides enhanced tolerance to environmental conditions while maintaining effective fire detection performance. The multisensor offers eight selectable detection modes, allowing smoke and heat detection characteristics to be configured for different applications and operating conditions. Drift compensation, an onboard short-circuit loop isolator and highly visible red LED indicators further enhance the device's functionality and system monitoring capabilities.
The integrated 86dB(A) voice sounder provides clear audible alarm messaging, with six selectable voice message and tone combinations covering evacuation, alert, all-clear and system-test applications. Certified to relevant sections of EN54-3, EN54-5, EN54-7, EN54-13, EN54-17 and EN54-29, the C-TEC CP414V is a professional fire alarm detection solution for installers and system designers looking for advanced functionality in a single CAST-PRO device. The CP414V requires a CA408 CAST base, which incorporates an integrated locking mechanism and ID tag.
Key Features
- C-TEC CAST-PRO CP414V smoke and heat multisensor with integrated voice sounder
- Combines smoke detection, heat detection and voice alarm functionality in one device
- Integrated 86dB(A) voice sounder for clear audible fire alarm messaging
- Six selectable voice messages and tones for evacuation, alert, all-clear and system testing
- C-TEC MASC™ advanced smoke detection chamber for effective fire detection and false-alarm resistance
- Eight selectable detection modes with different smoke and heat sensitivity settings
- AFFIRM™ detection algorithms designed to enhance real-fire detection while reducing unwanted alarms
- Built-in short-circuit loop isolator for enhanced addressable loop protection
- Two ultra-bright red LED indicator strips providing 360° visibility during alarm conditions
- Certified to EN54-3, EN54-5, EN54-7, EN54-13, EN54-17 and EN54-29 and compatible with C-TEC XFP/ZFP CAST panels
