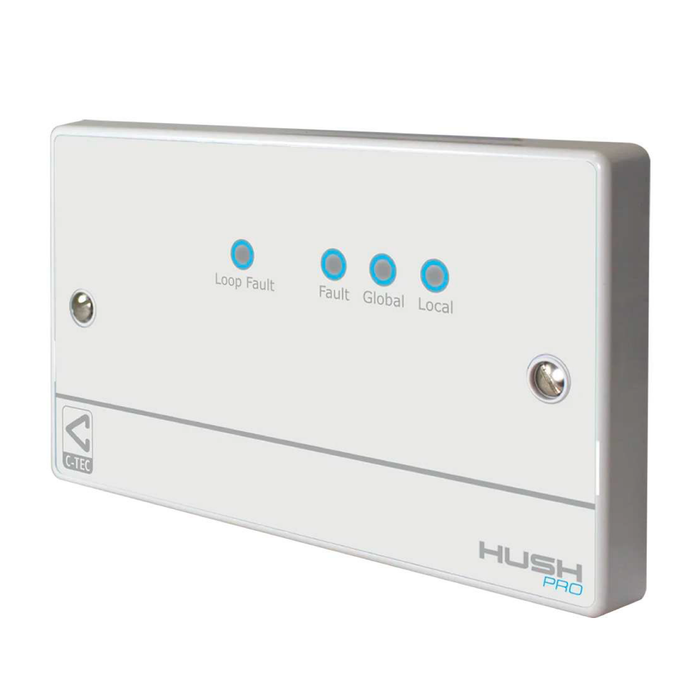

C-TEC Hush Pro Landlord Interface Xp/D-(CTEC-HP733/XP)
The C-TEC Hush-Pro Landlord Interface XP/D (CTEC-HP733/XP) is a specialist fire alarm interface designed to connect a standalone C-TEC Hush-Pro domestic fire alarm system to a compatible C-TEC ZFP addressable landlord or communal fire alarm system using the Apollo XP95/Discovery protocol. It provides an effective way to integrate individual dwelling fire alarm systems with communal fire detection infrastructure.
The HP733/XP enables a range of advanced landlord fire alarm functions, including Fire Level 1 and Fire Level 2 signalling, fault reporting, automatic evacuation scenarios and manual keyswitch evacuation by fire and rescue services. When multiple Hush-Pro systems are networked with a compatible communal fire alarm panel, the system can also support remote off-site monitoring and enhanced building-wide fire alarm management.
Designed for professional fire alarm applications, the C-TEC HP733/XP Hush-Pro Landlord System Interface is loop powered and supplied on a double-gang plastic plate. Its compact 146 x 85 x 21mm format allows mounting on a standard UK 25mm double-gang flush or surface back box, while the IP40-rated construction and operating range of -5°C to +40°C make it suitable for a variety of internal fire alarm installations.
Key Features
- C-TEC Hush-Pro Landlord System Interface for professional fire alarm applications.
- Compatible with C-TEC ZFP addressable fire alarm panels.
- Supports Apollo XP95/Discovery protocol systems.
- Connects standalone Hush-Pro domestic fire alarm systems to communal or landlord fire alarm systems.
- Supports Local Fire (Fire Level 1) and Global Fire (Fire Level 2) indication.
- Provides fault indication from the Hush-Pro controller and loop fault monitoring.
- Enables optional automatic phased evacuation through compatible communal systems.
- Supports manual keyswitch evacuation for fire and rescue service use.
- Allows potential remote off-site monitoring of fire and fault conditions when suitably configured.
- Loop powered, with compact 146 x 85 x 21mm dimensions and IP40 protection.
