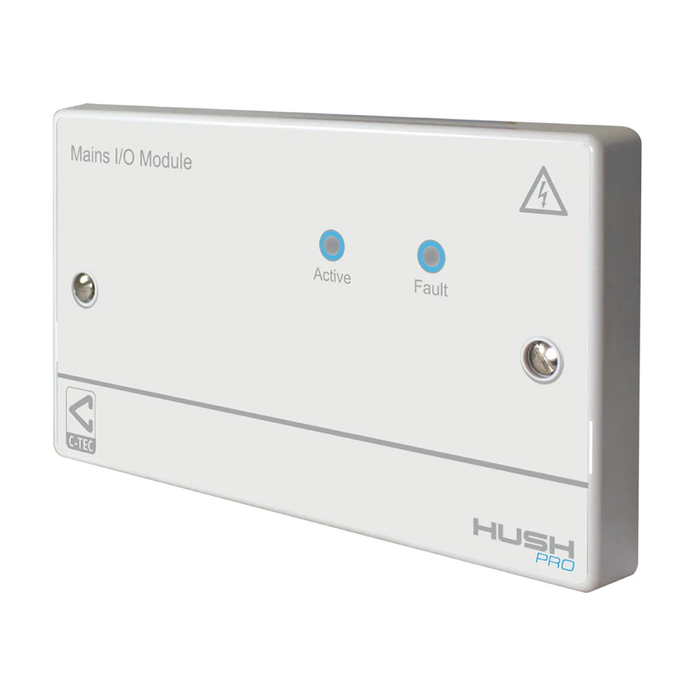

C-TEC Hush Pro Mains I/O Module Fl2-(CTEC-HP732)
The C-TEC Hush-Pro Mains I/O Module FL2 (CTEC-HP732) is a dedicated mains switching input/output module designed for use with C-TEC Hush-Pro Grade C fire alarm systems. Designed for Fire Level 2 (FL2)/EVAC applications, the HP732 provides a reliable interface for switching connected mains or DC equipment as part of an integrated Hush-Pro fire alarm solution.
The CTEC-HP732 features a single-pole changeover switch output capable of switching both mains and DC voltages, with a contact rating of 5A at 230VAC or 5A at 30VDC. It can also operate as either a single zone monitor or single switch monitor, providing flexible interfacing options for compatible Hush-Pro applications.
LPCB compliant to EN 54-17 and EN 54-18, the C-TEC HP732 incorporates an onboard bi-directional short-circuit isolator and is designed for double-gang back box mounting. Supplied with the required trigger resistor and EOL capacitor, this Hush-Pro mains switching I/O module is an ideal choice for installers and fire alarm professionals looking for dependable interfacing within residential fire detection and evacuation systems.
Key Features
- C-TEC Hush-Pro HP732 mains switching I/O module
- Designed for Fire Level 2 (FL2) / EVAC applications
- Compatible with C-TEC Hush-Pro BS5839-6 Grade C fire alarm systems
- LPCB compliant to EN 54-17 and EN 54-18
- Onboard bi-directional short-circuit isolator
- Single-pole changeover output with C/NO/NC contacts
- Switching capacity of 5A @ 230VAC or 5A @ 30VDC
- Can operate as a single zone monitor or single switch monitor
- Designed for double-gang back box mounting
- Supplied with 470Ω trigger resistor and EOL capacitor
