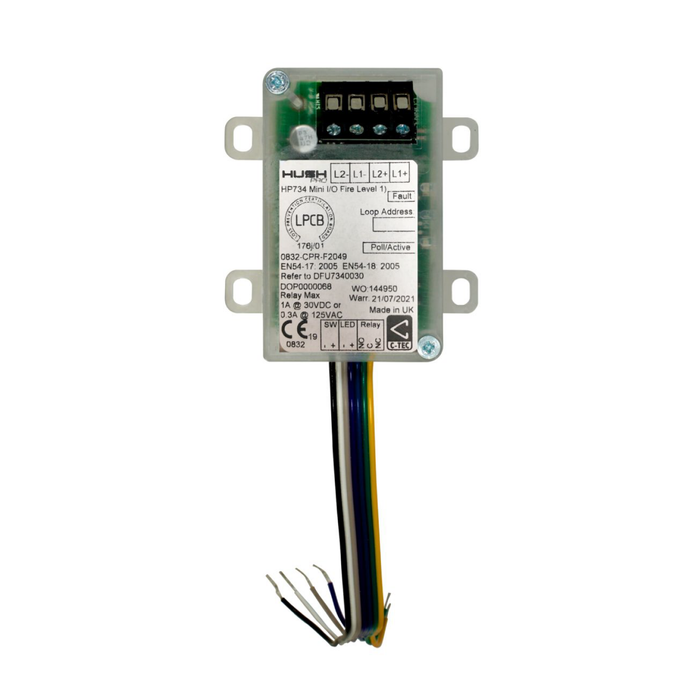

C-TEC Hush Pro Mini I/O Module Fl2-(CTEC-HP735)
The C-TEC Hush-Pro HP735 Mini I/O Module FL2/EVAC is a compact interface module designed for use with C-TEC Hush-Pro Grade C domestic fire alarm systems. It provides a monitored switch input and changeover relay output, making it a versatile interface for connecting external equipment and functions to a Hush-Pro fire alarm system. Its compact construction makes the HP735 particularly suitable for applications where installation space is limited.
Designed for Fire Level 2/Evacuation (FL2/EVAC) applications, the HP735 forms part of C-TEC's Hush-Pro range developed for enhanced fire protection in flats, apartments and residential environments. Hush-Pro uses distinct Fire Level 1 and Fire Level 2 alarm conditions, with Fire Level 2 representing a confirmed or more established fire condition requiring evacuation.
The C-TEC HP735 Mini I/O Module features an onboard bi-directional short-circuit isolator and is LPCB compliant to EN 54-17 and EN 54-18. Operating from 22–40 V DC, the module has a compact 65 x 60 x 20 mm enclosure and includes LED indication for relay activation/polling and monitored input faults. The HP735 is an ideal choice for compatible Hush-Pro fire alarm applications requiring reliable, space-saving input/output interfacing.
Key Features
- C-TEC Hush-Pro HP735 Mini I/O Module
- Designed for Fire Level 2 / Evacuation (FL2/EVAC) applications
- Compatible with C-TEC Hush-Pro BS5839-6 Grade C Controllers
- Monitored switch input for reliable system interfacing
- Single-pole changeover relay output with C/NO/NC contacts
- Onboard bi-directional short-circuit isolator
- LPCB compliant to EN 54-17 and EN 54-18
- Compact 65 x 60 x 20 mm enclosure
- Operating voltage of 22–40 V DC
- Clear LED indication for relay activity, polling and input faults
