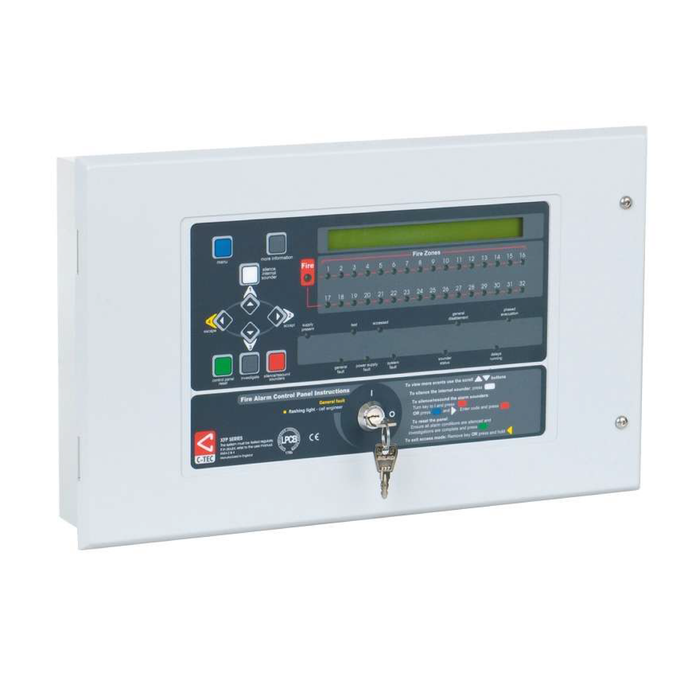

C-TEC XFP 2 Loop 32Z CAST-(CTEC-XFP502/CA)
The C-TEC XFP502/CA 2 Loop 32 Zone Addressable Fire Alarm Panel is a high-performance fire alarm control panel designed for reliable detection and alarm systems using C-TEC’s advanced CAST (C-TEC Addressable System Technology) protocol. Providing two addressable loops and 32 zones, the XFP502/CA is an excellent choice for small to medium-sized fire alarm applications where dependable performance, flexible configuration and straightforward system management are essential. The panel is certified to EN54-2, EN54-4 and EN54-13, supporting the requirements of modern addressable fire detection systems.
Powered by two 40V, 450mA loop drivers, the C-TEC XFP502/CA can support up to 255 CAST devices per loop, providing substantial capacity for detectors, manual call points, sounders, VADs and other compatible addressable devices. CAST technology uses high-speed data transmission and distributed intelligence to deliver fast, robust communication throughout the fire alarm system. The panel also provides automatic or manual soft addressing, multiple type codes and short/open-circuit fault identification, helping create a flexible and feature-rich addressable fire alarm solution.
For additional flexibility, the C-TEC XFP502/CA addressable fire panel includes two independently programmable conventional sounder circuits, programmable inputs and relay outputs, zone dependency and coincidence functions, day/night operation, investigation delays and phased evacuation facilities. Up to eight XFP master panels can also be connected using an optional two-wire RS485 network, making the system suitable for both standalone applications and larger networked fire alarm systems. With its durable metal enclosure, 32-zone indication and comprehensive monitoring functions, the XFP502/CA is a dependable choice for professional C-TEC CAST fire alarm systems.
Key Features
- 2-loop, 32-zone addressable fire alarm control panel
- Uses C-TEC CAST digital fire alarm protocol
- Supports up to 255 CAST devices per loop
- Two powerful 40V, 450mA loop drivers
- EN54-2, EN54-4 and EN54-13 certified
- Two independently programmable conventional sounder circuits
- Two programmable inputs plus three programmable relay outputs
- Automatic or manual soft addressing options
- Up to 8 XFP master panels can be networked via optional RS485 network card
- Durable metal enclosure with 32-zone LED indication, event monitoring and comprehensive fault monitoring
