C-TEC ZFP Multipath Repeater S CAST-(CTEC-ZREP1S/CA)

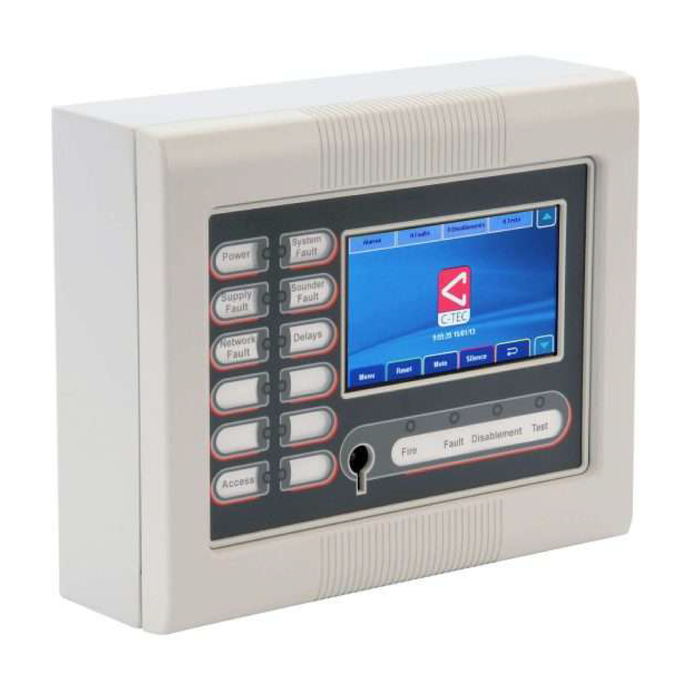

The C-TEC ZFP Multipath Repeater S CAST (CTEC-ZREP1S/CA) is a compact surface-mounted repeater and network controller designed for use with C-TEC ZFP CAST addressable fire alarm systems. Combining a full-colour touchscreen control module with C-TEC’s Hi-Net multi-path fault-tolerant network technology, it provides convenient remote access to key fire alarm system information and controls. CAST is C-TEC’s UK-designed distributed-intelligence addressable fire detection and alarm system, designed to work with compatible ZFP fire panels and CAST devices.
Designed for locations such as reception areas, entrances and access points, the ZREP1S/CA provides a practical way to monitor and control a ZFP fire alarm network without requiring the main control panel to be located in a prominent position. Its compact surface-mount enclosure measures approximately 214mm W x 178mm H x 70mm D, making it suitable where space and aesthetics are important. The integrated touchscreen provides a clear user interface, while the unit supports Access Level 2 functions, including silence, disable and reset operations.
The C-TEC ZFP Compact Controller ZREP1S/CA includes the Z41 touchscreen control module and ZHN Hi-Net network PCB as standard. Up to 64 ZFP Compact Controllers can be connected to a ZFP Hi-Net network, with the network supporting multi-path, fault-tolerant communication. The controller requires a separate EN54-4 compliant boxed PSU, such as C-TEC’s BF360-24, and is an ideal choice for compatible commercial and industrial addressable fire alarm systems requiring convenient remote control and clear system status indication.
Key Features
- C-TEC ZFP Compact Controller for CAST addressable fire alarm systems
- CAST protocol compatible for use with compatible C-TEC ZFP fire alarm panels
- Integrated Z41 full-colour touchscreen control module
- Includes ZHN Hi-Net multi-path fault-tolerant network PCB
- Supports full Access Level 2 functionality
- Allows key functions including silence, disable and reset
- Compact surface-mounted enclosure measuring approximately 214 × 178 × 70mm
- Up to 64 Compact Controllers can be connected to a ZFP Hi-Net network
- Designed for reception areas, entrances and access points
- Requires a separate EN54-4 compliant power supply
