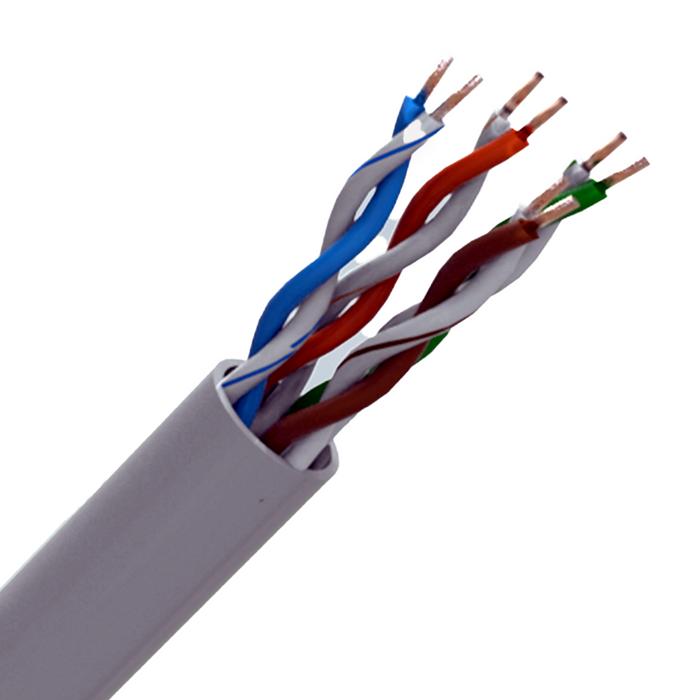

CQR CAT5E Internal Copper Cable 305m - Grey (CQR-CAT5EUTP/GY/PVC/305)

The CQR Professional Cat5e UTP Cable is a high quality solid copper network cable designed for reliable data and security installations.

Supplied in a 305m pull box, the cable features 4 unshielded twisted pairs (8 cores) with solid plain annealed copper conductors and a durable grey PVC outer sheath. It supports data transmission speeds of up to 100Mbps / 100MHz at distances up to 90 metres, making it ideal for CCTV, IP networking, access control and general structured cabling applications.

Designed with low resistance, strong cores and ease of installation in mind, CQR Cat5e provides a dependable solution for professional installers.

Key Features:

• Cat5e UTP network cable

• 305m pull box

• Solid copper conductors

• 4 twisted pairs / 8 cores

• Grey PVC outer sheath

• Eca Euroclass rated

• 100MHz frequency

• Up to 100Mbps at 90m

• 0.47mm conductor size

• Approx. 5mm overall diameter

• Operating temperature: -10°C to +80°C

• Complies with ISO 11801 and EN50575:2014+A1:2016
