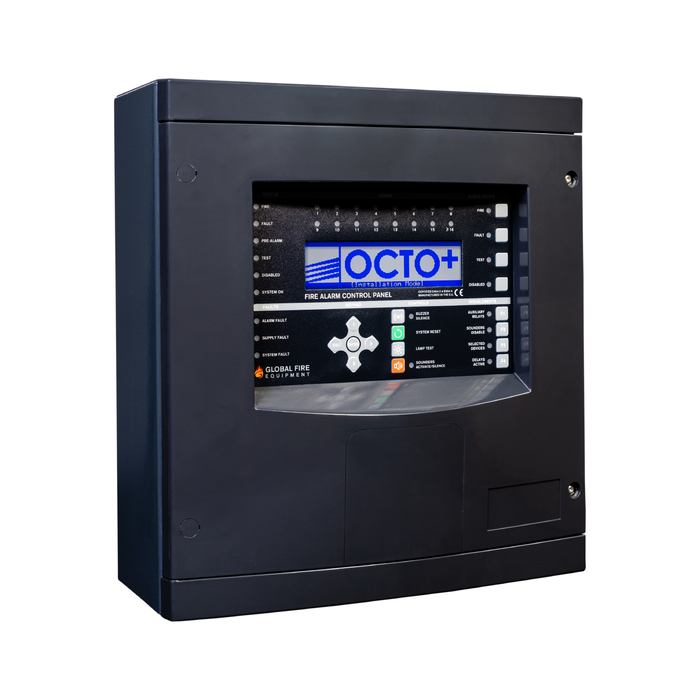

Global Fire OCTO+ 4 Loop Addressable Fire Alarm Control Panel (Anthracite) – (OCTO-4-BLK)
The Global Fire OCTO+ 4 Loop Control Panel (Anthracite) is a high-capacity addressable fire alarm control panel designed for larger and more complex installations. Built on the proven Chameleon peer-to-peer networking platform, the system ensures high reliability by allowing each panel to retain full system data, maintaining operation even if communication is interrupted.
With support for up to four addressable loops, this panel can manage a large number of devices, making it ideal for commercial buildings, industrial sites, schools and multi-area facilities. It offers flexible networking via RS422, fibre-optic or Ethernet, allowing integration with repeaters, additional panels and building management systems. The anthracite finish provides a modern, professional appearance while maintaining the robust performance expected from the Global Fire OCTO+ range.
Key Features
- 4 addressable loops
- Up to 250 devices per loop (125 address limit)
- Chameleon peer-to-peer networking with up to 32 panels
- Networkable via RS422, fibre-optic or TCP/IP
- Supports up to 128 loops in a networked system
- Compatible with repeater panels and remote access systems
- Backlit graphical LCD display with multi-language support
- 2 fire relays and 1 fault relay
- 2 programmable conventional alarm outputs
- Fully monitored loops for high system integrity
- Up to 384 programmable zones
- Up to 512 sounder groups and 512 I/O group
