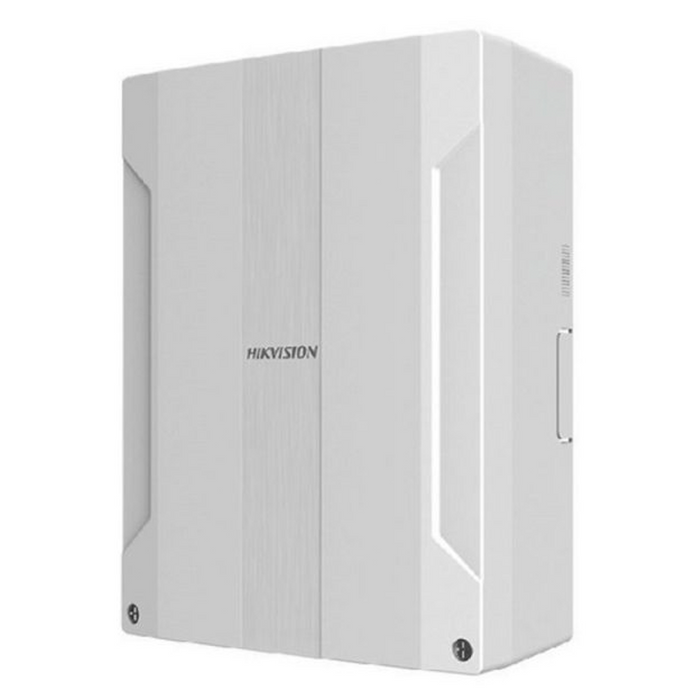

Hikvision AX Pro M2H Hybrid Wired/Wireless Control Panel (DS-PWA96-M2H-WE)


Designed and produced by the world leader in security, it’s time to rethink what your wireless security system can do. Completely driven from your app, on demand, and with a wide range of peripherals, the Hikvision AX PRO wireless hybrid intruder alarm system delivers video on-board, with revolutionary and proven wireless protocol for
knock out stability.

The AX PRO incorporates IVaaS, integrating video verification capabilities when used with the AX Pro PIR cameras, upto 4 camera video buffers ONBOARD, this shows the customer exactly what’s happening, so they can take appropriate action.

Fast, reliable and secure, our powerful Tri-X Wireless Technology delivers the next level of security; speeding up installations, while delivering the best experience for both installers and their customers. Don’t be a victim of jamming or interference! Advanced anti-jamming security on our radio protocol protects the integrity of the system over the long term, providing increased stability and security.

One manufacturer, one interface. With the AX PRO, the power is in your hands; manage multiple systems through the Hik-ProConnect app and web interface, configure devices, control video and monitor your CCTV. A total system with total control.

The Hikvision M2H is equipped with ample space for a backup battery and supports various communication methods such as TCP/IP, Wi-Fi, and GPRS/3G/4G networks. It boasts connectivity for up to 96 wireless zones/outputs, 48 wireless keyfobs, 4 repeaters, 6 sounders, and 8 tag readers & keypads, along with PIRCAM integration.

Featuring the latest wireless protocol, Tri-X, it ensures long RF transmission distances and supports up to 48 network users. Notable features include voice prompt functionality, configuration via web client, mobile client, and Convergence Cloud. Additionally, it supports ISAPI, Hik-Connect, and DC-09, catering to various scenarios including markets, stores, homes, factories, warehouses, and offices.

Moreover, the AX Pro seamlessly integrates IP cameras on board, allowing for 4x 7s clip storage, with each clip having its own dedicated storage space to prevent overwriting. The unit accommodates a large backup battery, compatible with 12V 7Ah dimensions (inside 150 × 64 × 94 mm).


  • TCP/IP, Wi-Fi, and 3/4G network
  • New generation wireless protocol: Tri-X/Cam-X
  • Long RF transmission distance
  • Two-way communication with AES-128 encryption
  • Up to 96 (including 48 PIRCAMs & 16 onboard Wired Zones & 2 onboard Wired Outputs)
  • Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
  • Voice prompt
  • Configuration via Web client, mobile client, and Convergence Cloud
  • Hik-Connect and Hik-ProConnect configuration depends on the user access level
  • Pushes alarm notification via messages or phone calls
  • Views live videos from Hik-Connect
  • Alarm video clips via emails and APP
  • Supports LED indicator to indicates system status
  • SIA-DC09 protocol, and supports both Contact ID and SIA data format
  • Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication

*Battery: Up to 12v 7ah (not included)*
