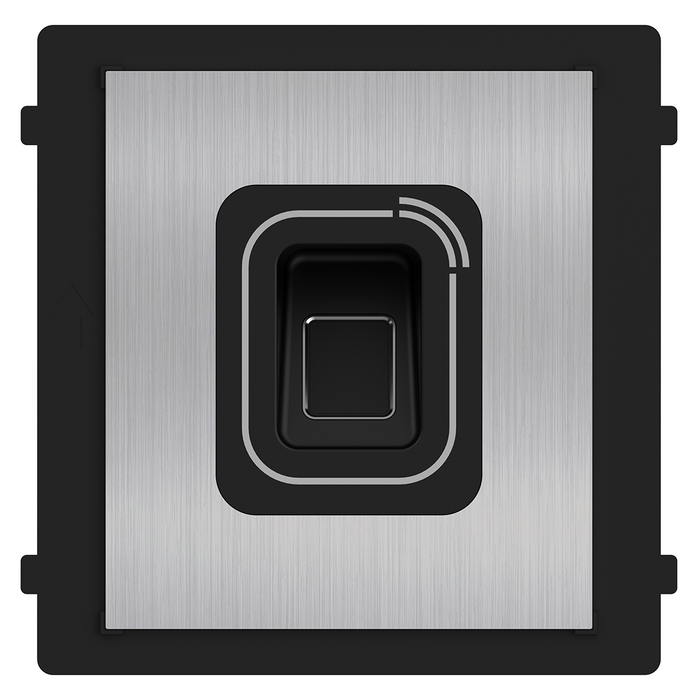

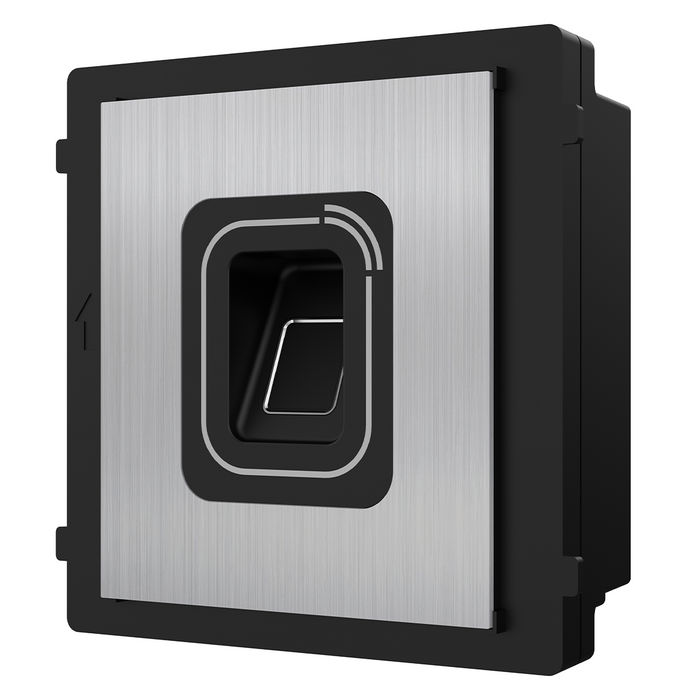

Hikvision Fingerprint and Prox Module – Stainless Steel (HIK-DS-KD-MFB/S)
The Hikvision DS-KD-MFB/S Fingerprint and Proximity Card Module is a premium stainless steel access control module designed for Hikvision's modular IP video intercom systems. It combines secure biometric fingerprint authentication with RFID card access, providing fast, reliable, and convenient entry for residential, commercial, and multi-tenant buildings. Its robust stainless steel construction offers a professional appearance while delivering excellent durability for demanding environments.
Designed to integrate seamlessly with Hikvision modular door stations, the DS-KD-MFB/S supports up to 1,000 fingerprints and 6,000 access cards, making it ideal for offices, apartment complexes, gated communities, and business premises. Compatible with M1 and DESFire cards, it offers flexible authentication options while simplifying user management through the connected main module.
Built for reliable outdoor operation, the module features an IP65-rated weather-resistant enclosure and operates in temperatures ranging from -30°C to 60°C. Supporting both flush and surface mounting, it is easy to install and expand as part of Hikvision's modular intercom solution, delivering a secure, scalable, and modern access control system.
Key Features:
- Fingerprint and RFID card reader module for Hikvision modular door stations
- Supports up to 1,000 fingerprint users
- Stores up to 6,000 access cards
- Compatible with M1 and DESFire proximity cards
- Durable stainless steel construction
- IP65-rated weatherproof design for outdoor installation
- Compatible with Hikvision IP, 2-Wire IP, and 2-Wire HD modular intercom systems
- Supports both flush and surface mounting
- RS-485 communication interface for reliable integration
- Wide operating temperature range from -30°C to 60°C
