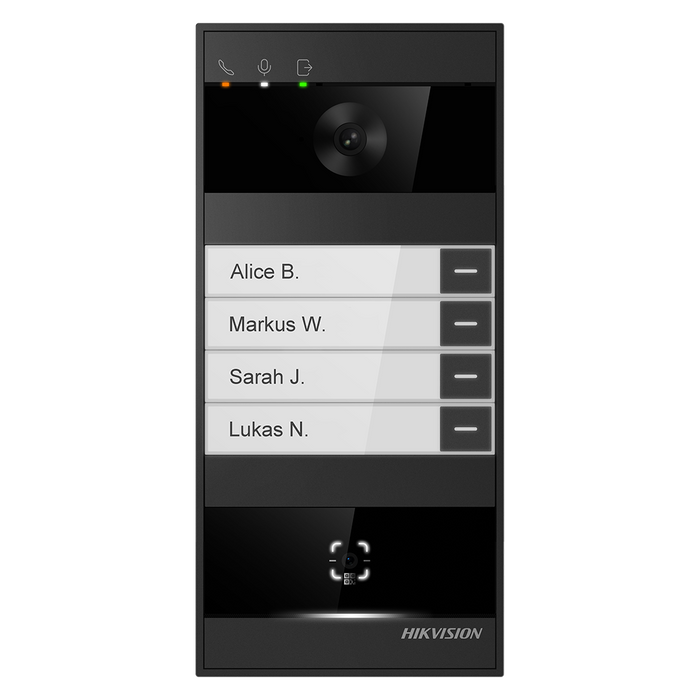

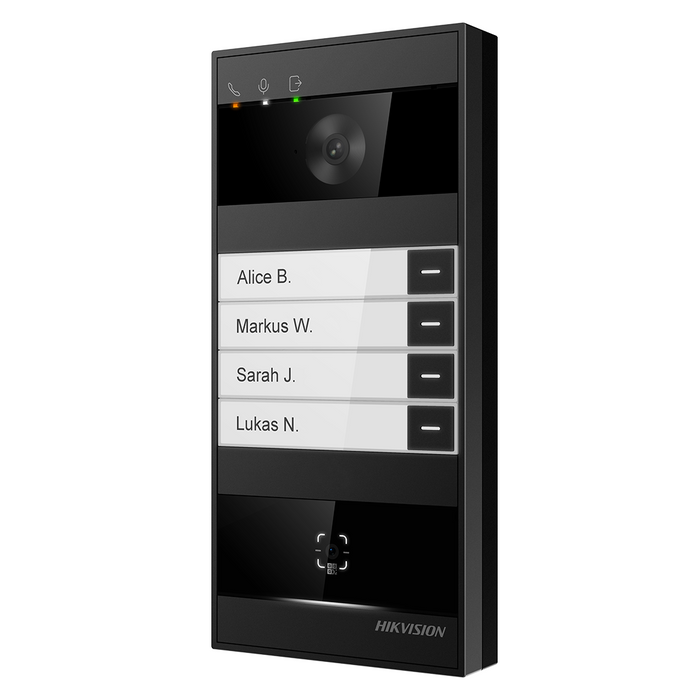

Hikvision IP 4 Button Villa Intercom with Face, QR code, Prox, Bluetooth (DS-KV8114-NWQE1)
The Hikvision DS-KV8114-NWQE1 is a next-generation IP video intercom door station designed for residential and small multi-occupancy applications. Featuring a 4MP wide-angle camera, up to 4 nametag call buttons and multiple access methods, it provides a complete solution for visitor communication and secure door entry.
The integrated 4MP camera offers a wide 150° field of view, with AI-ISP image processing, 120dB WDR and IR illumination to provide clear visitor images in a wide range of lighting conditions.
Users can unlock doors using face recognition, MIFARE card, QR code, Bluetooth or the Hik-Connect app, providing flexible access for residents, staff and visitors.
Dual built-in microphones and speakers provide clear two-way communication, with AI noise reduction and echo cancellation helping improve audio quality in busy outdoor environments.
With Wi-Fi 6, PoE and 12V DC power options, the DS-KV8114-NWQE1 offers flexible installation and can control up to two separate door locks. Its robust IP65-rated housing makes it suitable for outdoor installations.
Key Features:
- 4MP IP video intercom door station
- Up to 4 nametag call buttons
- 150° horizontal wide-angle field of view
- AI-ISP image processing
- 120dB WDR
- IR illumination up to 3m
- Face recognition
- Built-in 13.56MHz MIFARE card reader
- QR code access
- Bluetooth BLE 5.2 access
- Remote unlocking via Hik-Connect
- Dual built-in microphones
- Dual built-in speakers
- AI noise reduction and echo cancellation
- Wi-Fi 6 connectivity
- 10/100Mbps Ethernet
- PoE (IEEE 802.3at) or 12V DC power
- Controls up to 2 door locks
- Supports up to 5,000 users and 5,000 faces
- Supports up to 25,000 cards
- MicroSD card support up to 128GB
- Surface or flush mounting
- IP65 weather-resistant construction
- Operating temperature from -40°C to +60°C
