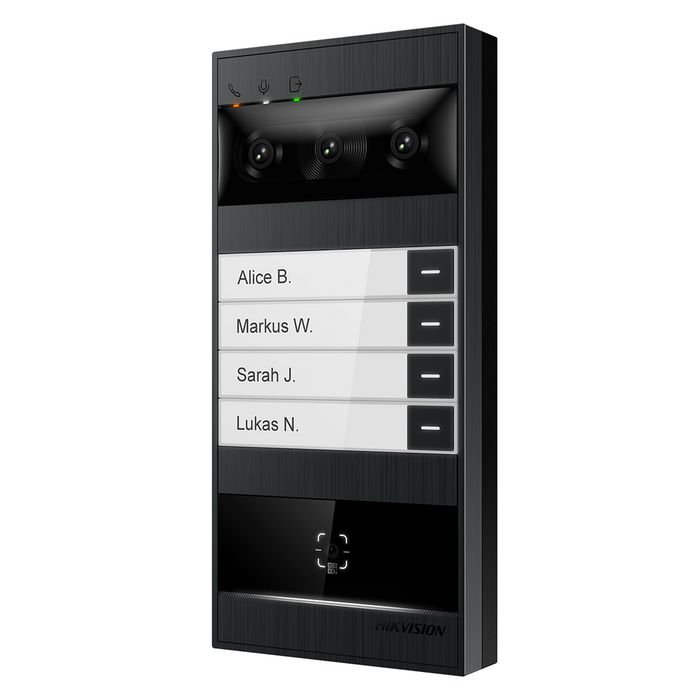

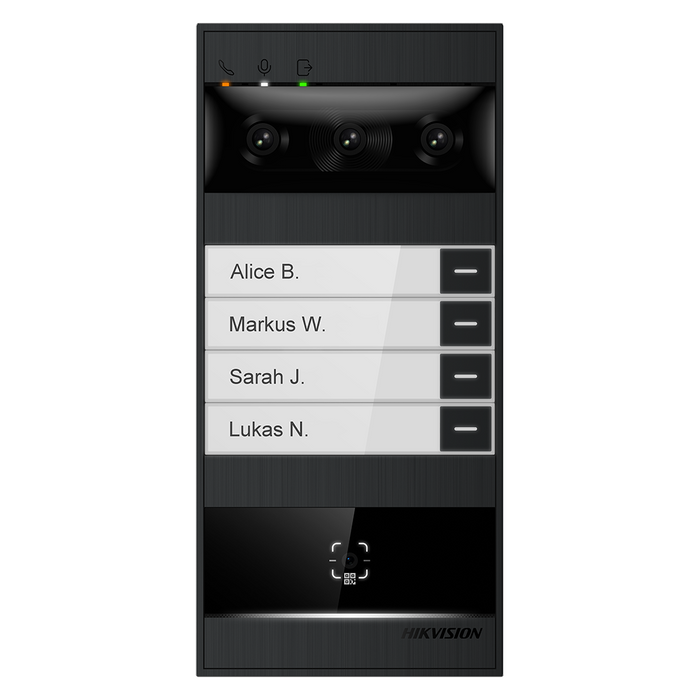

Hikvision IP TripleCam 4 Button Villa Intercom with Face, QR code, Prox, Bluetooth (DS-KV8114T-NWQE1)

The Hikvision DS-KV8114T-NWQE1 is an advanced IP video intercom door station featuring a triple-lens camera system, 180° field of view and multiple smart access methods. Designed for residential, multi-occupancy and commercial entrances, it provides excellent visitor visibility alongside intelligent access control and two-way communication.

The triple-camera system combines 4MP + 2MP + 2MP cameras to provide an ultra-wide 180° field of view, helping eliminate blind spots and providing improved coverage of visitors and parcels positioned close to or directly below the door station.

Users can gain access using face recognition, MIFARE/DESFire cards, QR codes, Bluetooth or the Hik-Connect app, providing a flexible solution for residents, staff and visitors.

Advanced AI functionality includes human and vehicle perimeter detection, fall detection and abnormal sound detection, while built-in microphones and dual speakers provide clear two-way communication with AI noise reduction and echo cancellation.

With Wi-Fi 6, PoE and 12V DC power options, the DS-KV8114T-NWQE1 offers flexible installation and can control up to two separate door locks.

Key Features:

• Triple-lens 4MP + 2MP + 2MP camera system

• Ultra-wide 180° field of view

• Up to 4 nametag call buttons

• 120dB WDR

• IR illumination up to 3m

• AI-ISP image processing

• Face recognition

• MIFARE and DESFire card reader

• QR code access

• Bluetooth BLE 5.2 access

• Remote unlocking via Hik-Connect

• Human and vehicle perimeter detection

• Fall detection

• Abnormal sound detection

• Built-in microphones and dual speakers

• AI noise reduction and echo cancellation

• Wi-Fi 6 connectivity

• 10/100Mbps Ethernet

• PoE (IEEE 802.3at) or 12V DC power

• Controls up to 2 door locks

• Supports up to 5,000 users and 5,000 faces

• Supports up to 25,000 cards

• MicroSD card support up to 128GB

• Surface or flush mounting

• Weather-resistant construction

• Operating temperature from -40°C to +60°C
