Hikvision Ultra 4 Door Access Controller (DS-K2704X(P))

SKU HIK-DS-K2704X(P)

Access control offers a secure, convenient, flexible and cost-effective way of controlling who has access to your building and when that access is allowed. All businesses must protect assets and employees whilst allowing people to move freely in the areas that they need. It is common in buildings that are secured by locks and keys for doors to be left unlocked all day. This opens the possibility of opportunist theft and malicious damage. Installing an access control system means that you will never have to change a lock again. Tokens are issued to allow access through the controlled doors and are easily barred from the system if they are lost or stolen.

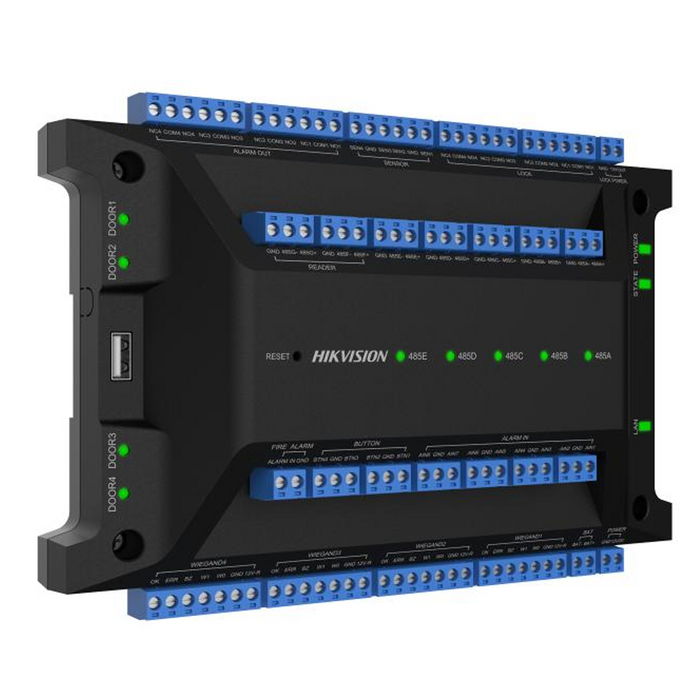

The Hikvision DS-K2704X(P) is a feature-rich four-door access controller designed to provide secure and scalable access control solutions for a wide range of installations. Supporting up to 100,000 users and 300,000 event records, this controller is ideal for larger facilities requiring robust security measures. It is compatible with Hik-Connect Teams Mode, allowing for convenient user credential management through a smartphone app. This access controller delivers reliable performance and easy management, making it an excellent choice for multi-door setups in commercial, industrial, and office environments.

Features:

  • Supports 4 door control. It can extend up to 62 DS-K2M002X access modules, and up to 128 doors can be controlled
  • Compatible with Hik-Connect Teams Mode, enabling user credentials to be uploaded directly through the smartphone app.
  • Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
  • Web configuration management. All configurations can be realized via web without software application
  • Supports professional access control applications such as multi-door interlocking and anti-passback
  • Supports backup battery access. Charging and discharging are available
  • It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection

*Battery: Up to 12v 7ah (not included)*
