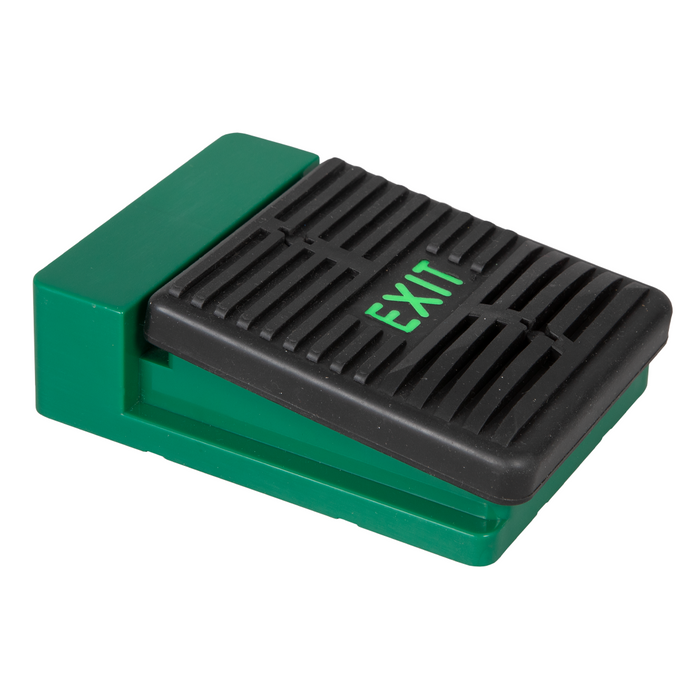

RGL Step to Exit Button (STE-P)

RGL are an industry leader in manufacturing high quality, reliable and cost-effective access control equipment.

The STE-P is a foot press door release button. This unit has been designed to create a no-hand door release solution, ideal for doors where users will be carrying goods, or environments where an alternative clean no -hand solution is required.

Features:

• Contacts: Double pole NO/NC contacts
• Output: 4amp contact @ 30V AC/DC
• Moulded legend
• Security screws (allen key type)
• Silver contacts
• Operating temperature -20° to + 60°c
• Operating travel: 2mm
• Contact resistance: 10m OHM (max)
• Operating life (mechanical): 1,000,000
• Step to Exit Plate/Device
• High impact plastic back box
• Moulded rubber surface, hard wearing
• Can be fitted to wall or floor (kick plate or foot plate)
• Distance between fixing holes: 60mm
