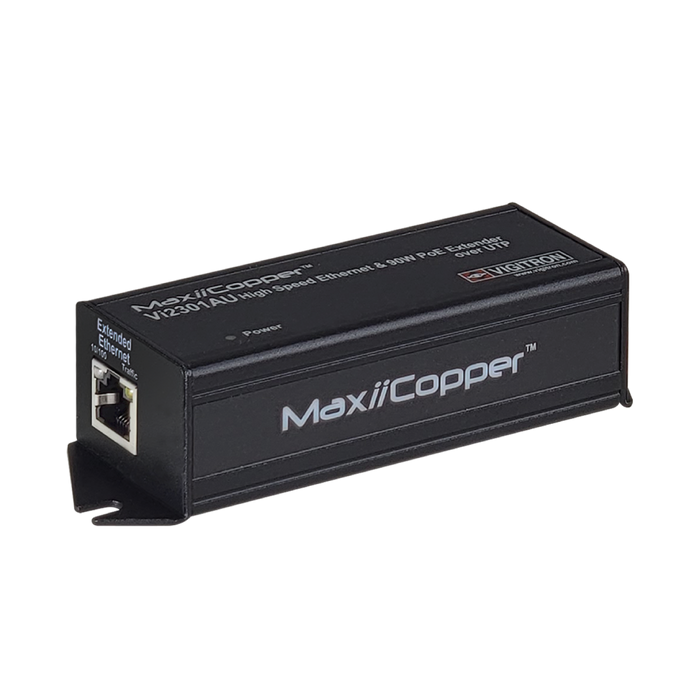

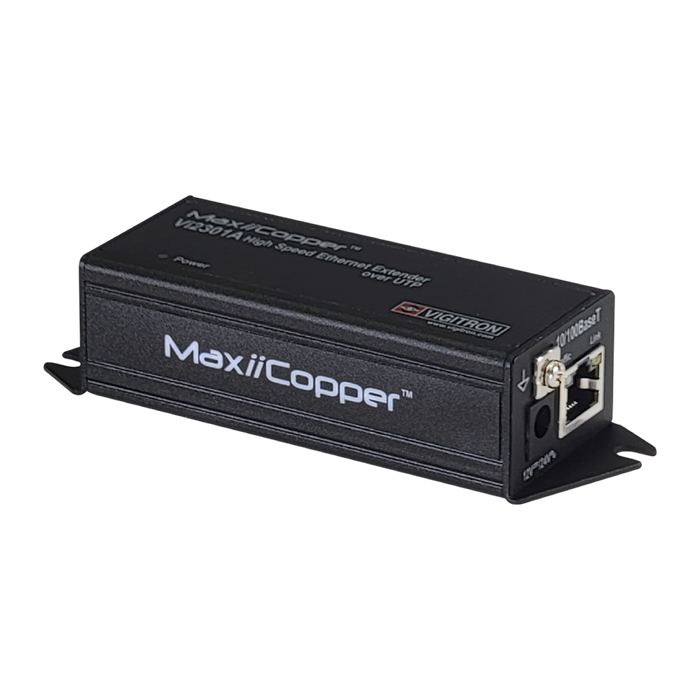

Vigitron 1-Port MaxiiCopper Ethernet/PoE Extender up to 900m, Requires 72w PoE or 12VDC 1ah-(VIG-VI2301AU)
The Vigitron VI2301AU 1-Port MaxiiCopper Ethernet/PoE Extender is designed to overcome the traditional 100m Ethernet limitation, extending both data and PoE transmission up to 900m (3,000ft) over standard Cat5e/Cat6 UTP cabling. It is an ideal solution for IP cameras, PTZ cameras, access control systems, and other network devices installed across large properties, campuses, warehouses, and industrial sites.
Supporting IEEE 802.3af/at/bt PoE standards with up to 90W Extended Pass-Through PoE (EPTP™), the VI2301AU delivers reliable power and high-speed Ethernet through a single cable. The unit features true plug-and-play operation with no software, switch configuration, or network programming required, making deployment quick and hassle-free. It can be powered by a 72W PoE source or a 12VDC power supply, providing flexible installation options.
Built for demanding surveillance and networking applications, the VI2301AU incorporates Symmetric Bandwidth (SBW™) and Virtual Zero Packet Loss (VZPL™) technologies to ensure stable, high-performance data transmission. Mega-Pixel Certified (MPC™) for bandwidth-intensive IP cameras and capable of operating in temperatures from -40°C to +75°C, this compact extender delivers dependable performance even in harsh outdoor and industrial environments.
Key Features
- Extends Ethernet and PoE transmission up to 900m (3,000ft) over Cat5e/Cat6 UTP cable
- Supports Extended Pass-Through PoE (EPTP™) up to 90W
- Compatible with IEEE 802.3af, 802.3at, and 802.3bt PoE standards
- Plug-and-play installation with no network programming or switch configuration
- Supports 10/100Mbps full-duplex Ethernet communication
- Mega-Pixel Certified (MPC™) for high-bandwidth IP surveillance applications
- Symmetric Bandwidth (SBW™) technology with Virtual Zero Packet Loss (VZPL™)
- Supports both one-pair and four-pair UTP wiring
- Operates in extreme temperatures from -40°C to +75°C
- Compact aluminium housing suitable for camera housings, junction boxes, and industrial installations
