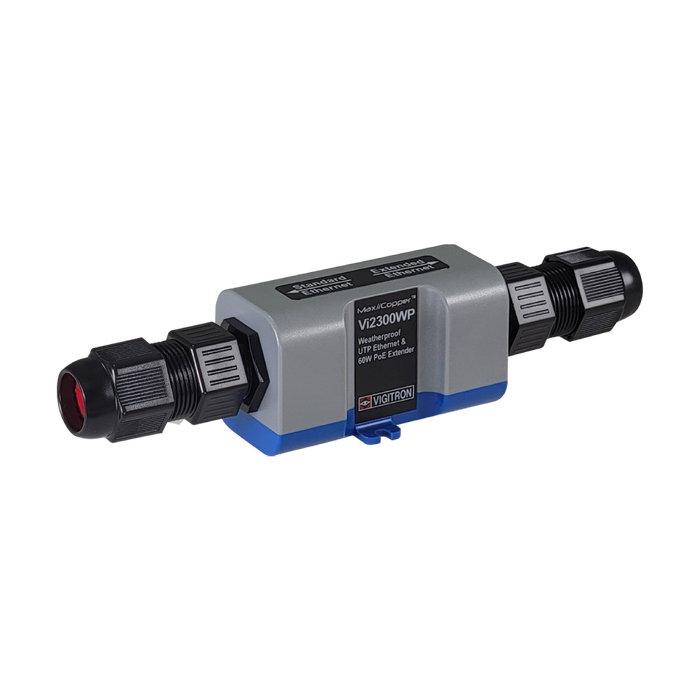

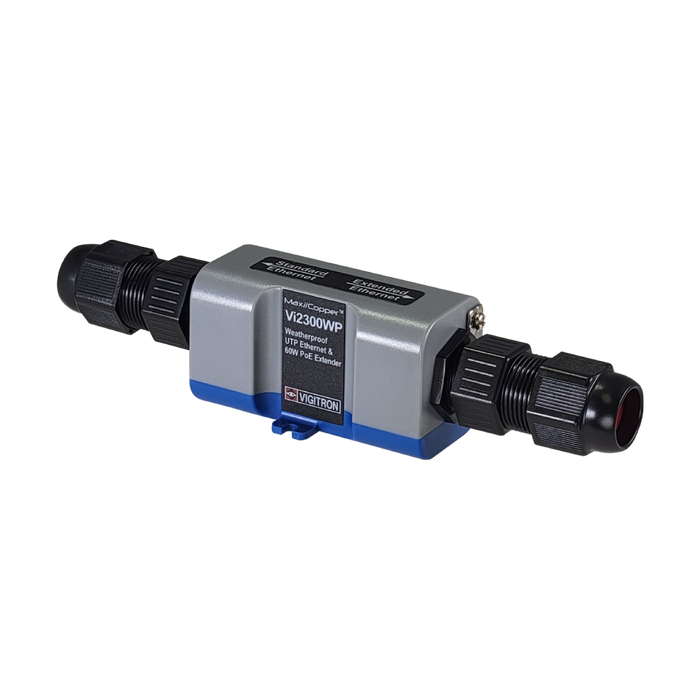

Vigitron 1-Port MaxiiCopper Ethernet/PoE Extender up to 900m, Requires 72w PoE, Hardened, IP67(VIG-VI2300WP)

The Vigitron VI2300WP MaxiiCopper 1-Port Ethernet/PoE Extender is a hardened, IP67-rated networking solution designed to extend Ethernet and Power over Ethernet (PoE) far beyond the traditional 100m limit. Supporting transmission distances of up to 900 metres (depending on network speed and application), it is ideal for connecting IP cameras, access control devices, and other PoE-powered equipment in demanding outdoor environments. The extender requires a 72W PoE source and passes both power and data over existing Cat5 or better UTP cabling.

Built for reliability, the VI2300WP features a rugged weatherproof IP67 enclosure that protects against dust, moisture, and harsh environmental conditions. It operates in temperatures ranging from -40°C to +75°C, making it suitable for parking lots, campuses, industrial facilities, perimeter security, warehouses, and other challenging installations. Its plug-and-play operation requires no network programming or switch configuration, enabling quick deployment while maintaining full-duplex Ethernet performance.

Vigitron's advanced Symmetric Bandwidth (SBW™) and Virtual Zero Packet Loss (VZPL™) technologies ensure stable, high-performance data transmission over long cable runs. Supporting IEEE 802.3af/at/bt PoE standards with Extended Pass-Through PoE (EPTP™), the VI2300WP delivers reliable power and bandwidth for high-resolution IP surveillance cameras and other bandwidth-intensive network devices, making it an excellent solution for extending network infrastructure without installing local power supplies.

KeyFeatures

• Extends Ethernet and PoE transmission up to 900m (3,000ft) over Cat5 or better UTP cable.
• Hardened IP67-rated enclosure for complete dust and water protection.
• Requires a 72W PoE source and supports pass-through PoE up to 74W.
• Compatible with IEEE 802.3af, 802.3at, and 802.3bt PoE standards.
• Plug-and-play installation with no network configuration or switch settings required.
• Supports 10/100Base-T Ethernet with full-duplex operation.
• Symmetric Bandwidth (SBW™) technology ensures consistent upload and download performance.
• Virtual Zero Packet Loss (VZPL™) provides reliable long-distance data transmission.
• Operates in extreme temperatures from -40°C to +75°C.
• Ideal for outdoor IP cameras, access control, perimeter security, campuses, warehouses, and industrial networking applications.
