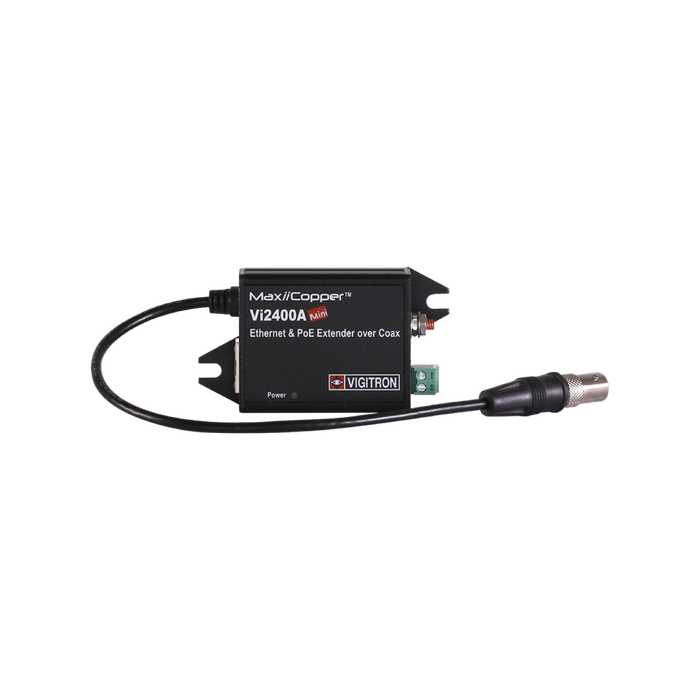

Vigitron 1-Port MaxiiCopper Mini Ethernet Extender/PoE over Coax (Requires 12v 1ah)-(VIG-VI2400A) (
The Vigitron VI2400A 1-Port MaxiiCopper Mini Ethernet Extender/PoE over Coax is a compact, high-performance solution that extends Ethernet and Power over Ethernet (PoE) across existing coaxial cable infrastructure. Designed for IP surveillance and other high-bandwidth applications, it eliminates the need for costly cable replacements while significantly increasing network transmission distances. It requires a 12V 1Ah power supply when local power is used.
Supporting 10/100Base-T Ethernet with full-duplex communication, the VI2400A delivers reliable network connectivity over coax distances of up to 5,000 ft (1,515m) at 10Mbps or 1,800 ft (546m) at 100Mbps. The extender is fully compatible with IEEE 802.3af and 802.3at PoE standards, allowing both data and power to be transmitted over existing coax, making it ideal for upgrading analogue CCTV systems to modern IP cameras.
Built with a rugged aluminium housing, the VI2400A is designed to withstand demanding environments with an operating temperature range of -40°C to +75°C. Its compact size allows installation inside camera housings, junction boxes, or weatherproof enclosures, making it a practical and cost-effective choice for commercial, industrial, transport, and security applications where extending Ethernet over existing coax infrastructure is essential.
Key Features
- Extends Ethernet and PoE over existing coaxial cable infrastructure
- Supports transmission distances up to 5,000 ft (1,515m) at 10Base-T
- Delivers up to 1,800 ft (546m) at 100Base-T
- Compatible with IEEE 802.3af and 802.3at PoE standards
- Compact mini design fits inside junction boxes and camera enclosures
- Supports full-duplex 10/100Mbps Ethernet communication
- MegaPixel Certified (MPC™) for high-bandwidth IP camera applications
- Rugged extruded aluminium housing for long-term durability
- Wide operating temperature range from -40°C to +75°C
- Requires a 12V 1Ah power supply when locally powered
