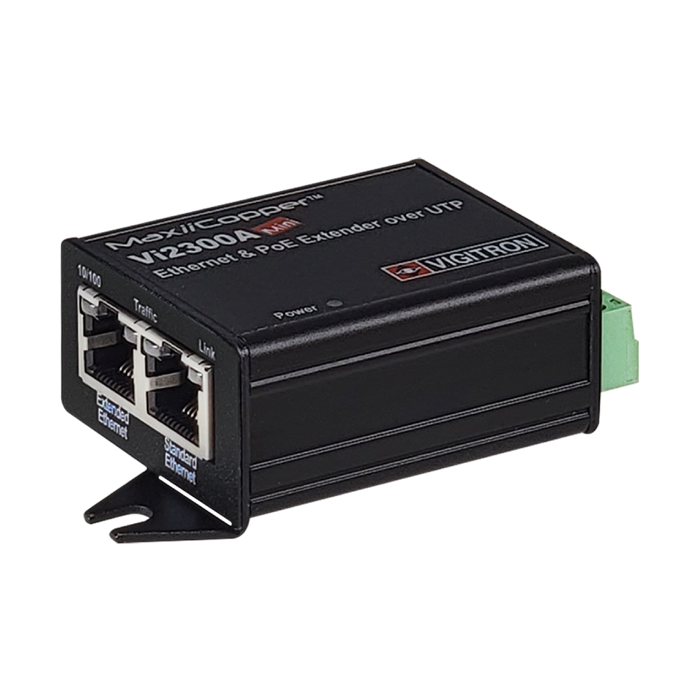

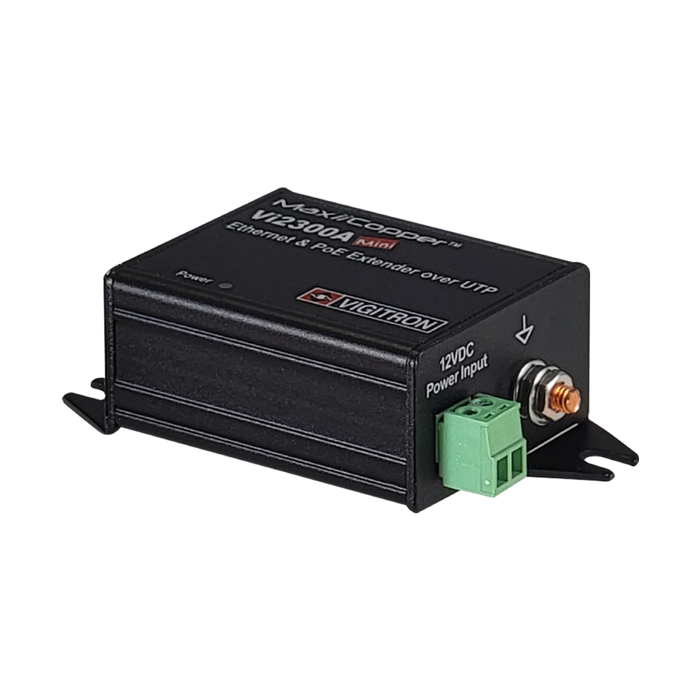

Vigitron 1-Port MaxiiCopper Mini Ethernet/PoE Extender up to 900m, Requires 72w PoE or 12VDC 1ah- (VIG-VI2300A)
The Vigitron VI2300A MaxiiCopper Mini Ethernet/PoE Extender is designed to extend Ethernet and Power over Ethernet (PoE) transmission far beyond the standard 100-metre network limitation. Supporting transmission distances of up to 914 metres (3,000 ft) over standard Cat5e/6 UTP cable, it provides a reliable solution for connecting IP cameras, access control devices, VoIP equipment, and other network devices in large-scale installations.
Its compact, plug-and-play design allows the VI2300A to fit neatly inside camera housings, junction boxes, weatherproof enclosures, and plenum-rated installations. The extender requires 72W PoE (up to 74W pass-through) or a 12VDC power supply, eliminating the need for complex configuration or network programming while maintaining full-speed 10/100Mbps Ethernet performance.
Built for demanding surveillance and networking environments, the VI2300A features Vigitron's Symmetric Bandwidth (SBW™) and Virtual Zero Packet Loss (VZPL™) technologies to deliver stable, high-quality data transmission over long distances. Certified for megapixel IP cameras and designed to operate in temperatures from -40°C to +75°C, it is an ideal choice for outdoor security, industrial sites, warehouses, campuses, and parking facilities.
Key Features
- Extends Ethernet and PoE transmission up to 914m (3,000 ft) over Cat5e/6 UTP cable
- Supports 10/100Base-T Ethernet with full duplex communication
- Compatible with IEEE 802.3af, 802.3at and 802.3bt PoE standards
- Delivers Extended Pass-Through PoE (EPTP™) up to 74W
- Requires 72W PoE source or 12VDC power supply
- Plug-and-play installation with no configuration or programming required
- Compact design fits inside junction boxes, camera housings and weatherproof enclosures
- Features Symmetric Bandwidth (SBW™) and Virtual Zero Packet Loss (VZPL™) technology
- Supports Jumbo Frames and is certified for high-bandwidth megapixel IP cameras
- Industrial operating temperature range of -40°C to +75°C for reliable outdoor performance
