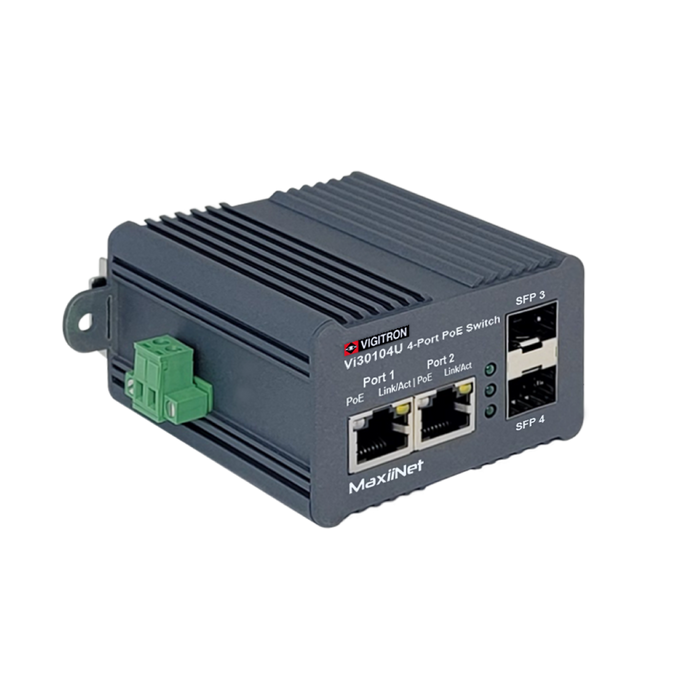

Vigitron 4-Port MaxiiNet 10/100/1G DC power 802.3af/at/bt 90W Input PoE Switch-(VIG-VI30104U)
The Vigitron 4-Port MaxiiNet 10/100/1G DC Power 802.3af/at/bt 90W Input PoE Switch (VIG-VI30104U) is a high-performance Layer 2 Gigabit PoE switch designed to deliver reliable data transmission and high-power PoE for demanding security and networking applications. Featuring two Gigabit RJ45 PoE ports and two Gigabit SFP fibre uplink ports, it provides flexible copper and fibre connectivity for CCTV surveillance, industrial networking, perimeter security, and enterprise deployments.
Engineered for performance, the VI30104U supports IEEE 802.3af, 802.3at, and 802.3bt PoE standards, supplying up to 90W per PoE port for powering PTZ cameras, multi-sensor cameras, wireless access points, and other high-power PoE devices. Intelligent power management automatically allocates available power, while automatic PoE priority and over-current protection ensure stable operation even in demanding environments. The non-blocking Layer 2 switching architecture, Jumbo Frame support, and QoS capabilities deliver smooth, high-bandwidth network performance.
Built with a rugged aluminium housing, the MaxiiNet VI30104U is suitable for desktop, wall-mount, or DIN-rail installation and is designed to operate in harsh environments from -40°C to +70°C. MegaPixel Certified (MPC™) for reliable IP camera transmission and compliant with leading IEEE networking standards, this compact Gigabit PoE switch is an excellent choice for professional CCTV installations, industrial automation, transportation, campus security, and critical infrastructure projects requiring dependable power and data distribution.
Key Features
- 4-port Layer 2 Gigabit Ethernet PoE switch.
- Supports IEEE 802.3af, 802.3at and 802.3bt PoE standards.
- Delivers up to 90W PoE on supported ports.
- Two 1Gb RJ45 copper ports and two 1Gb SFP fibre uplink ports.
- Intelligent automatic PoE power allocation.
- Automatic PoE priority management for connected devices.
- Supports Jumbo Frames up to 10KB for improved network efficiency.
- MegaPixel Certified (MPC™) for reliable IP camera transmission.
- Wide operating temperature range of -40°C to +70°C.
- Compact aluminium housing with desktop, wall-mount and DIN-rail installation options.
