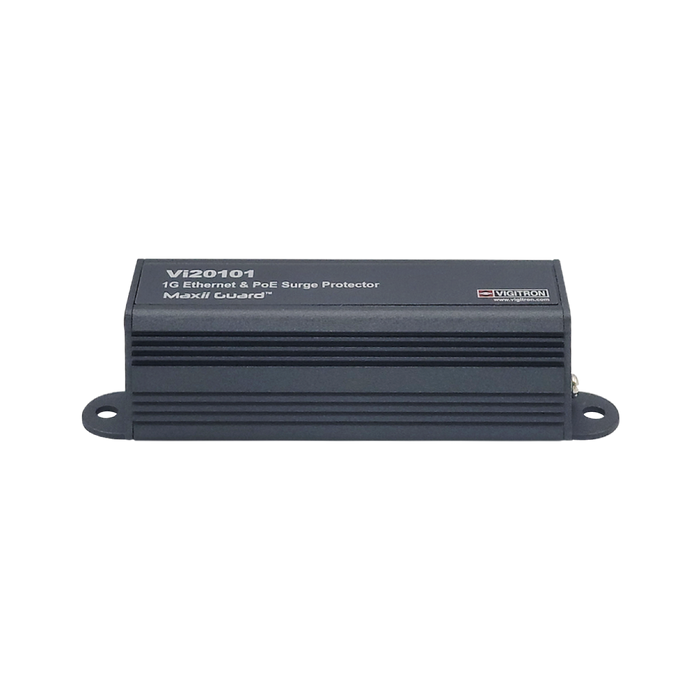

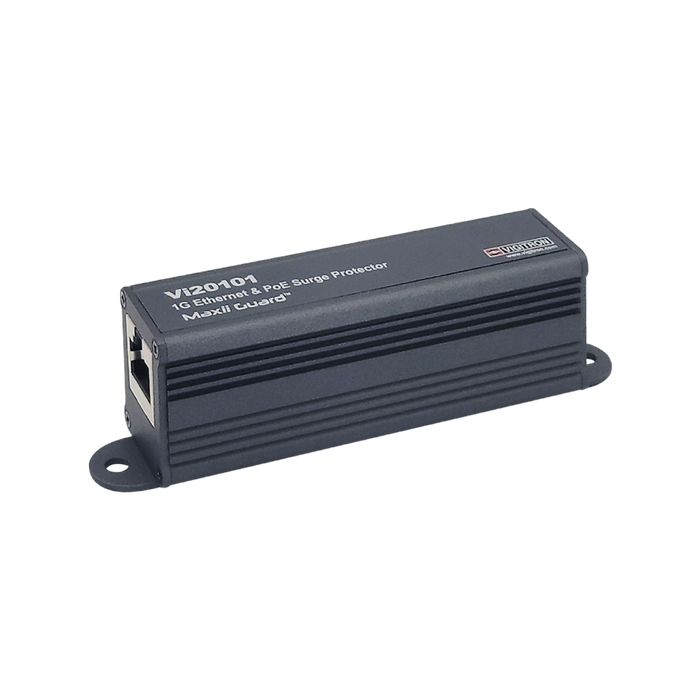

Vigitron MaxiiGuard 1G Ethernet Surge Protector -(VIG-VI20101)
The Vigitron MaxiiGuard VI20101 is an industrial-grade 1 Gigabit Ethernet surge protector designed to safeguard PoE-powered network devices from lightning strikes, voltage spikes, and electrical surges. Supporting 10/100/1000Base-T Ethernet and IEEE 802.3af/at/bt PoE standards up to 90W, it delivers reliable protection without compromising network performance.
Its ultra-compact inline design allows the VI20101 to be installed only where surge protection is required, making it ideal for IP cameras, PoE switches, wireless access points, and other critical network equipment. Multiple mounting options, including direct port connection, DIN rail, and wall mounting, provide exceptional flexibility for control cabinets, outdoor enclosures, and industrial installations.
Built to perform in demanding environments, the VI20101 operates in temperatures ranging from -40°C to +85°C and offers 20kA surge protection per pair with ultra-fast response times. Certified to IEC/EN surge protection standards, it helps minimize equipment downtime, reduce maintenance costs, and extend the lifespan of valuable Ethernet infrastructure.
Key Features
- Supports 10/100/1000Base-T Gigabit Ethernet networks
- Compatible with IEEE 802.3af, 802.3at, and 802.3bt PoE up to 90W
- Provides 20kA surge protection per pair for superior equipment protection
- Ultra-fast <200ns response time against voltage surges
- Compact inline design saves installation space
- Supports direct port, DIN rail, and wall mounting options
- Protects IP cameras, PoE switches, wireless APs, and network devices
- Wide operating temperature range of -40°C to +85°C
- Certified to IEC/EN 61643-21 and EN 61000-4-5 Class 4 surge standards
- Rugged industrial-grade aluminum housing with IP40 protection rating
