Vigitron NetMux Ethernet and PoE Port Multiplexer (VIG-VI00103)

The Vigitron NetMux Vi00103 Ethernet and PoE Port Multiplexer allows two IP/PoE devices to operate over a single Cat5/6 cable, providing a simple and cost-effective solution for expanding existing CCTV and IP installations without installing additional network cabling.

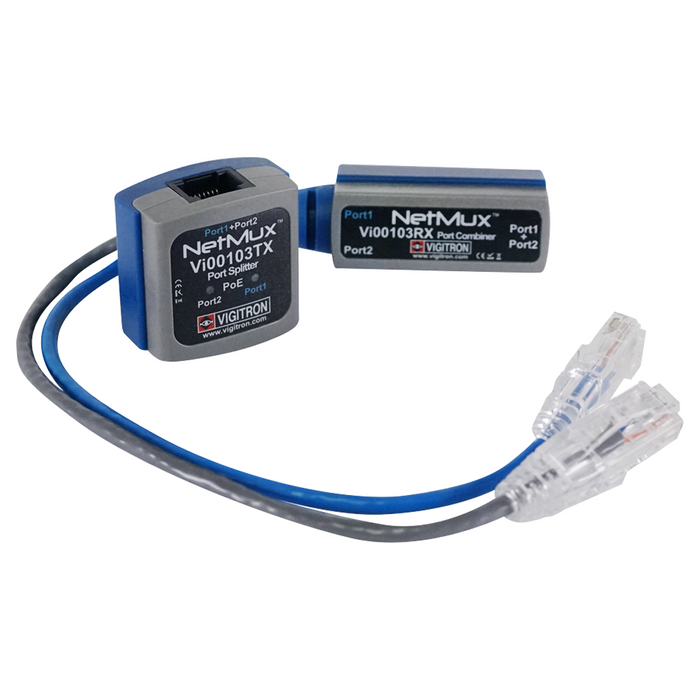

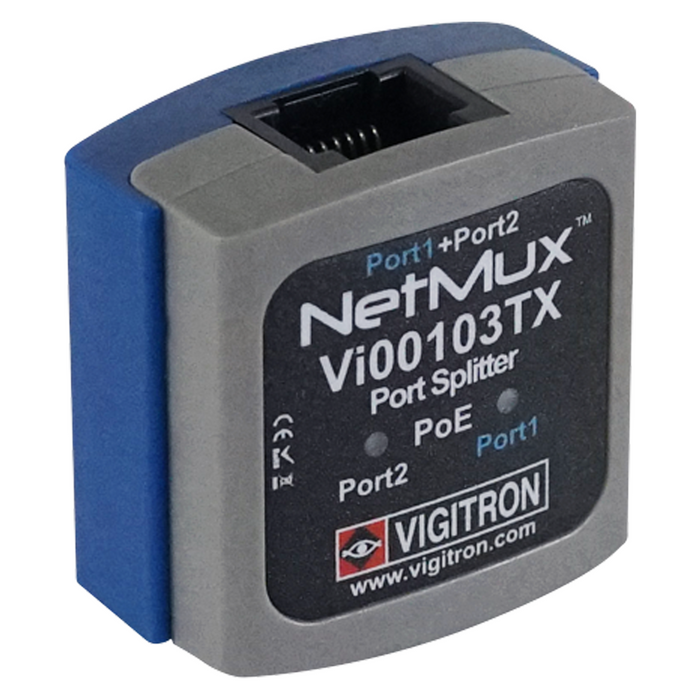

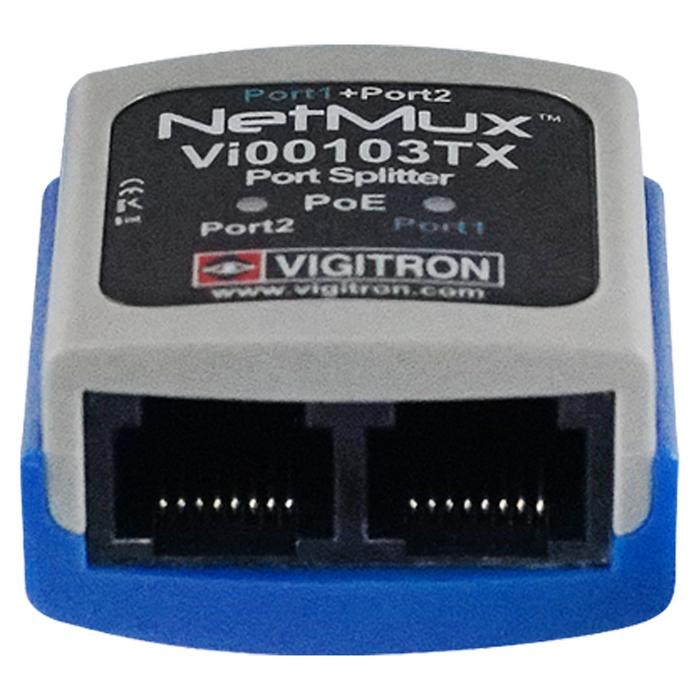

The Vi00103 consists of a combiner and splitter, enabling two separate Ethernet and PoE signals to be transmitted over one cable. It supports 10/100Mbps Ethernet and can provide up to 37W PoE per connected device, with compatibility for IEEE 802.3af and 802.3at PoE.

No external power supply is required, making the Vi00103 particularly useful for adding an additional IP camera or PoE device where only one existing Cat5/6 cable is available.

Key Features:

• Connect 2 IP/PoE devices over a single Cat5/6 cable

• Supports 10/100Mbps Ethernet

• Up to 37W PoE per device

• IEEE 802.3af/at compatible

• No external power supply required

• Includes combiner and splitter modules

• PoE status LED indication

• Ideal for adding additional IP cameras to existing cabling

• Reduces installation time and cabling costs

• Operating temperature: -40°C to +75°C

• CE, FCC, RoHS and WEEE compliant
