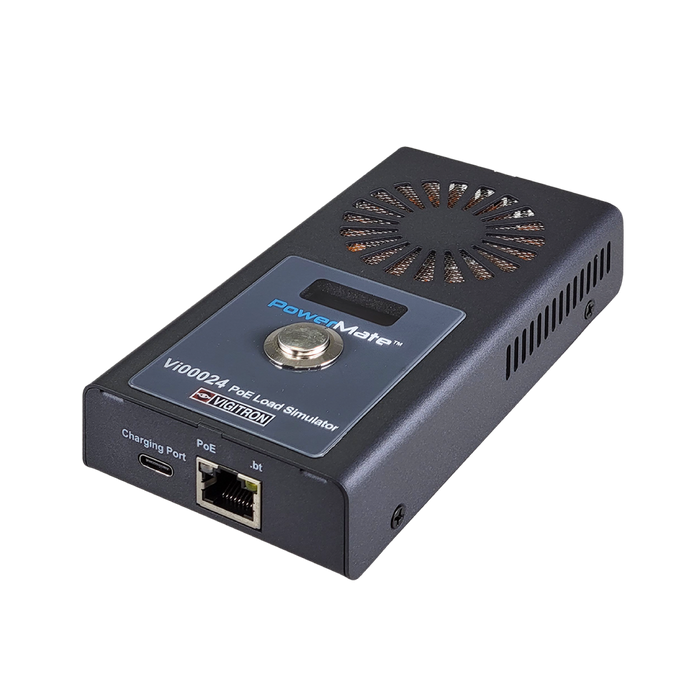

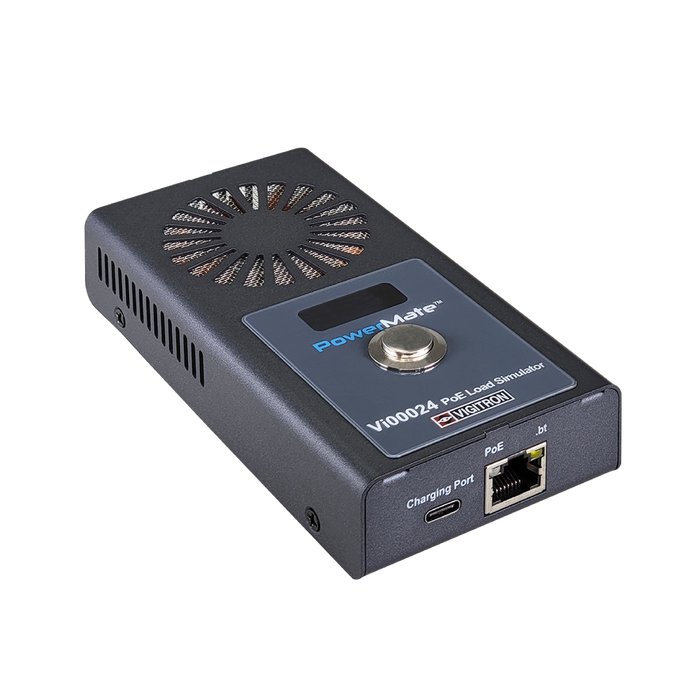

Vigitron PowerMate PoE Maximum load meter w/ voltage/power meter up to 74W PoE-(VIG-VI00024)
The Vigitron PowerMate VI00024 is a professional PoE testing tool designed to verify the maximum available Power over Ethernet (PoE) at any point in a network before connecting IP cameras, wireless access points, or other PoE-powered devices. Supporting IEEE 802.3af, 802.3at, and 802.3bt standards, it accurately measures PoE output up to 74W, helping installers confirm that sufficient power is available for reliable device operation.
Featuring both Automatic and Manual testing modes, the VI00024 allows users to either perform a quick one-button PoE capacity test or manually increase the simulated load to identify the maximum power a network can deliver. The built-in OLED display provides real-time voltage and power readings, enabling fast diagnostics and simplifying network troubleshooting during installation and maintenance.
Its compact, lightweight design and integrated rechargeable battery make the PowerMate VI00024 ideal for field technicians working across multiple sites. Compatible with 10/100/1000Base-T Ethernet networks, this portable tester helps reduce installation time, prevent costly service callouts, and ensure PoE infrastructure is ready before critical equipment is deployed.
Key Features
- Supports IEEE 802.3af, 802.3at, and 802.3bt PoE standards
- Measures maximum available PoE power up to 74W
- Tests PoE capacity anywhere within an Ethernet network
- Automatic mode for fast one-button power testing
- Manual mode for controlled PoE load simulation
- OLED display shows real-time voltage and power readings
- Compatible with 10/100/1000Base-T Ethernet networks
- Built-in rechargeable battery with extended operating time
- USB Type-C charging for convenient recharging
- Compact, portable design for installers and network technicians
